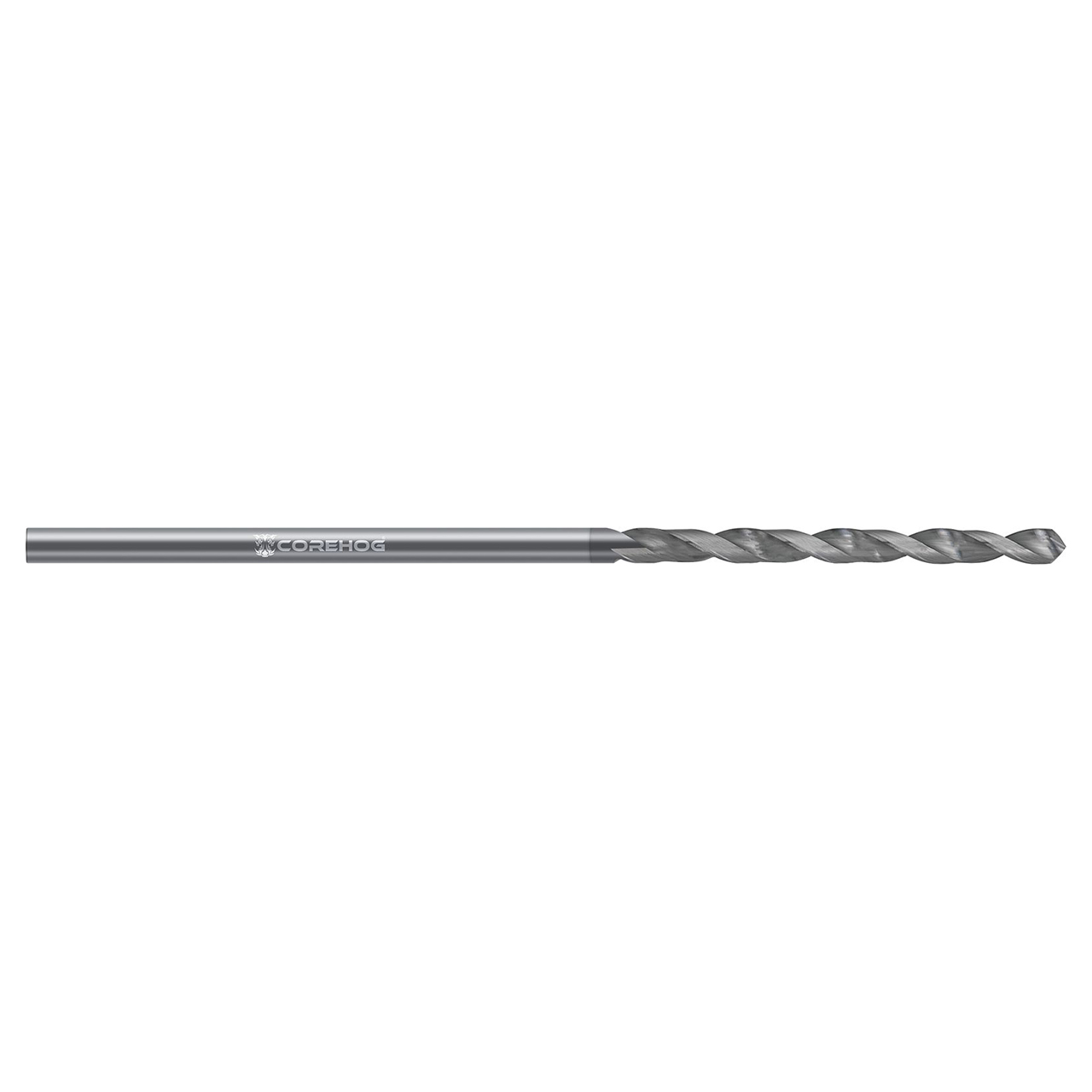

CoreHog C37663 | 0.1990" Drill Diameter x 0.1990" Shank x 1.5000" (1-1/2) Flute Length 2 Flute Uncoated Solid Carbide Jobber Length Drill Bit

$65.50
Brand:
CoreHog
Drill Bit Size (Wire):
#8
Drill Point Angle:
118 Degree
Overall Length (Inch):
6"
Overall Length (Decimal Inch):
6.0000"
Overall Length (mm):
152.40mm
Finish/Coating:
Uncoated
SKU:
10245103
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Suitable for use in a wide range of composites and plastics, CoreHog's offering of 8 facet drills efficiently spreads out the tool pressure throughout the cut, eliminating delamination on exit.

Features
  • High strength design maximizes MRR
  • For use in hand and CNC operations
  • Solid carbide
  • Precision manufactured in the USA

Product Specifications
Manufacturer Part NumberC37663
Drill Diameter (Inch)0.1990"
Flute Length (Inch)1.5000" (1-1/2)
Shank Diameter (Inch)0.1990"
Secondary Point Angle (Degree)80 Degree
Overall Length (Inch)6.000" (6)
Size#8
MetricN
Point Angle (Degree)118 Degree
CoatingUncoated
Substratesolid carbide
Number of Flutes2
