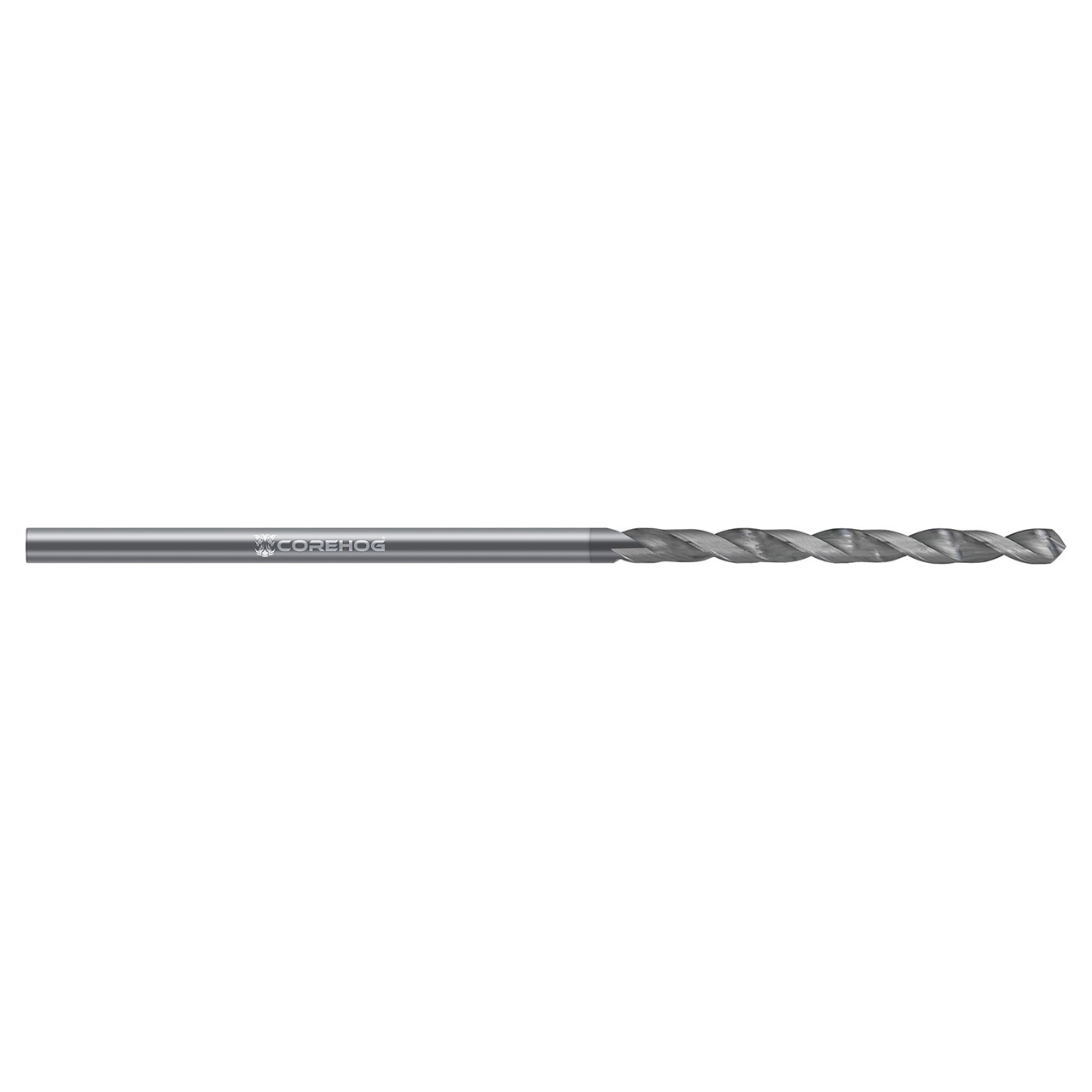

CoreHog C48696 | 0.2380" Drill Diameter x 0.2380" Shank x 1.5000" (1-1/2) Flute Length 2 Flute Uncoated Solid Carbide Jobber Length Drill Bit

$60.30
Brand:
CoreHog
Drill Bit Size (Wire):
B
Drill Point Angle:
118 Degree
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.60mm
Finish/Coating:
Uncoated
SKU:
10245114
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Suitable for use in a wide range of composites and plastics, CoreHog's offering of 8 facet drills efficiently spreads out the tool pressure throughout the cut, eliminating delamination on exit.

Features
  • High strength design maximizes MRR
  • For use in hand and CNC operations
  • Solid carbide
  • Precision manufactured in the USA

Product Specifications
Manufacturer Part NumberC48696
Drill Diameter (Inch)0.2380"
Flute Length (Inch)1.5000" (1-1/2)
Shank Diameter (Inch)0.2380"
Secondary Point Angle (Degree)80 Degree
Overall Length (Inch)4.000" (4)
SizeB
MetricN
Point Angle (Degree)118 Degree
CoatingUncoated
Substratesolid carbide
Number of Flutes2

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
CoreHog
Drill Bit Size (Wire):
B
Drill Point Angle:
118 Degree
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.60mm
Finish/Coating:
Uncoated
