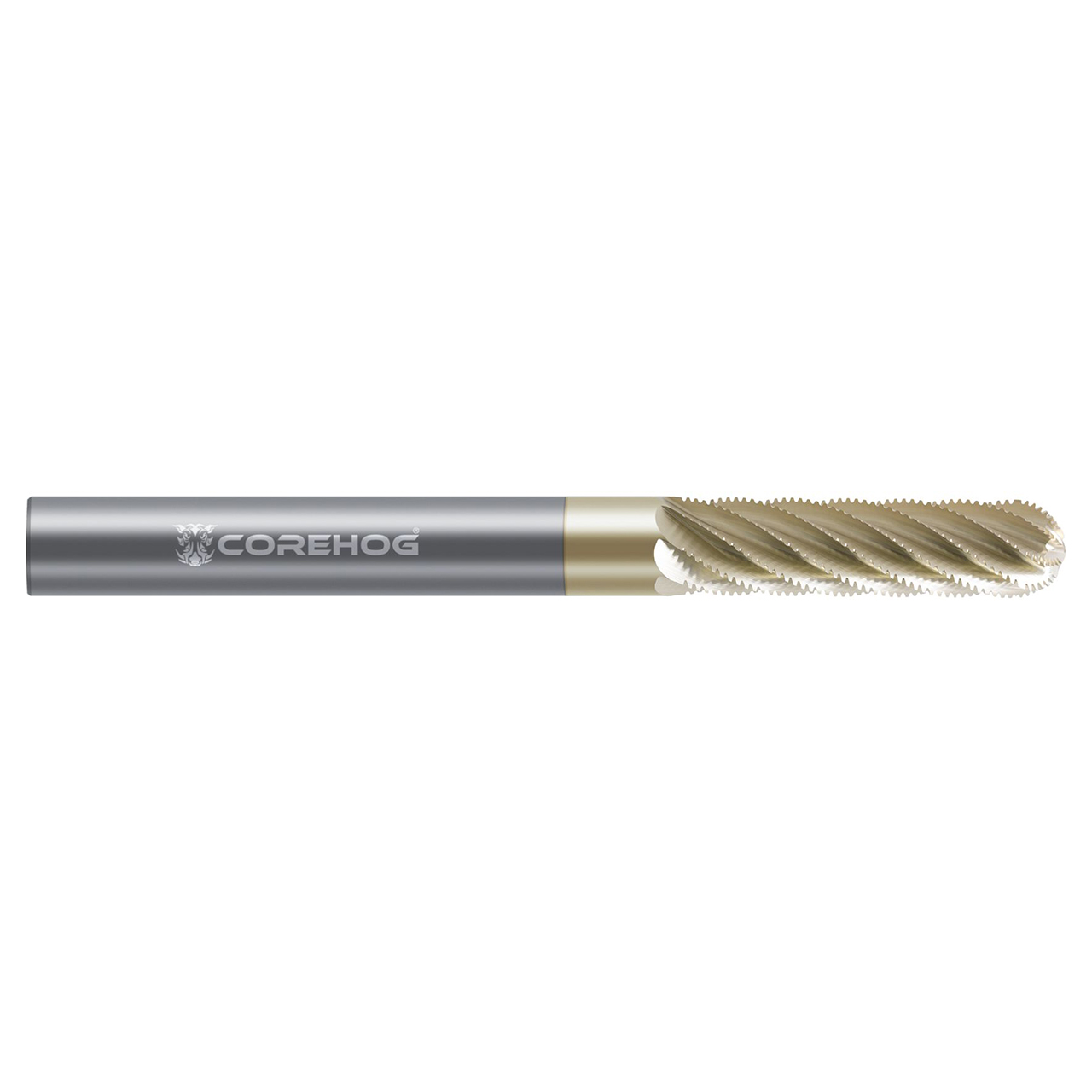

Featuring a ball end profile for the shaping and roughing of complex surfaces, CoreHog's Ball End CoreHoggers are used for the bulk material removal of honeycomb composite materials including Nomex, Kevlar, Phenolic, and Glass.
Features:
- Center cutting
- Solid carbide
- Designed for increased productivity and increased MRR when roughing high density honeycomb core materials
- Provides excellent performance when roughing and finishing foam materials like Rohacell, Poly Foam, and Styrofoam
- ZrN coating offers higher hardness and added lubricity for maximum performance
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | C60420 |
| Cutter Diameter (Inch) | 0.2500" (1/4) |
| Length of Cut (Inch) | 1.3750" (1-3/8) |
| Shank Diameter (Inch) | 0.2500" (1/4) |
| Overall Length (Inch) | 6.000" (6) |
| Metric | N |
| Coating | ZrN |
| Substrate | Solid Carbide |
| Number of Flutes | 8 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
CoreHog
Mill Diameter (Inch):
1/4"
Mill Diameter (Decimal Inch):
0.2500"
Mill Diameter (mm):
6.35mm
Number of Flutes:
8
Length of Cut (Inch):
1-3/8"
Length of Cut (Decimal Inch):
1.3750"
Length of Cut (mm):
152.40mm
Overall Length (Inch):
6"
Overall Length (Decimal Inch):
6.0000"
Overall Length (mm):
152.40mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Finish/Coating:
Zirconium Nitride
