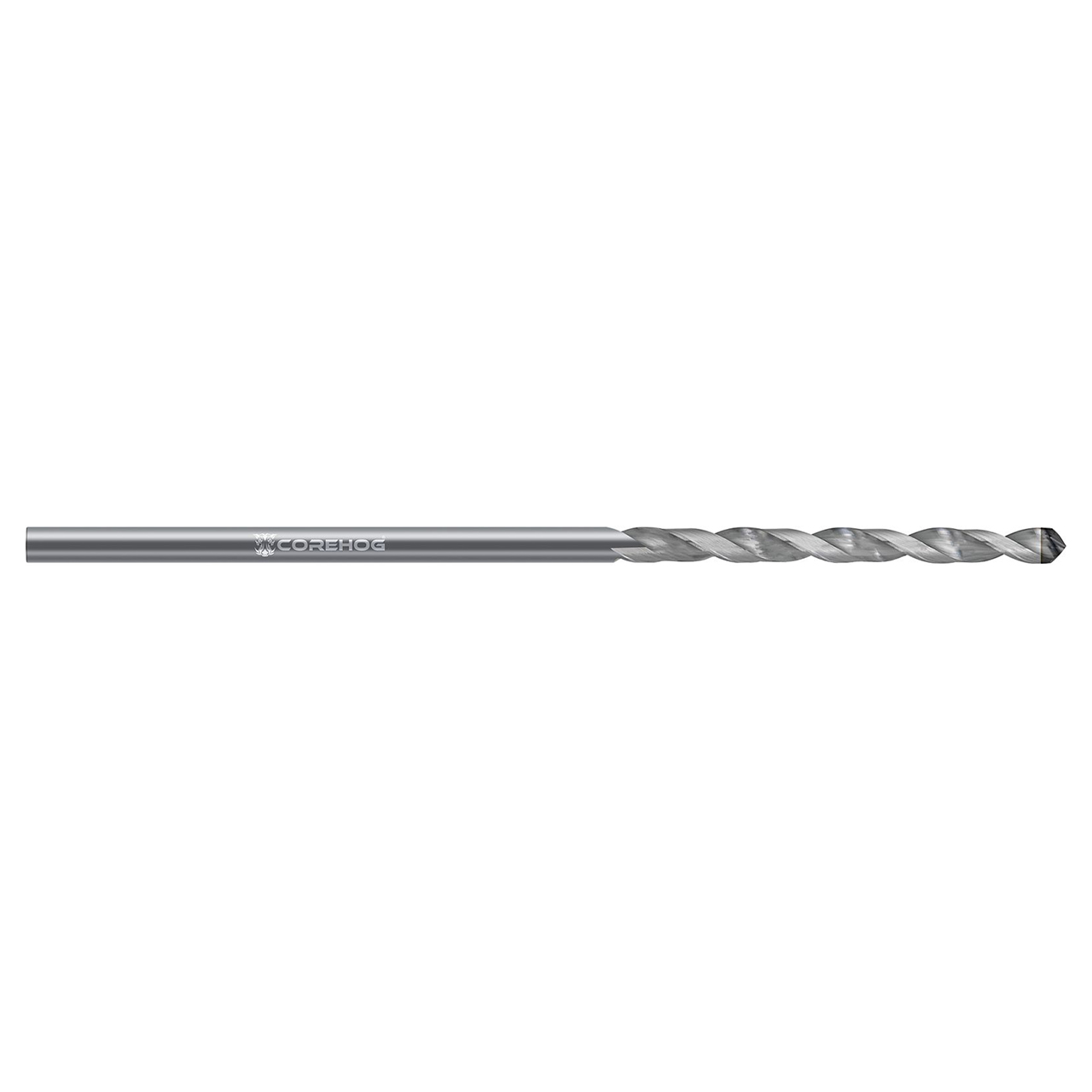

This CoreHog offering of 8 facet drills feature a PCD diamond brazed onto a solid carbide body, providing a significant boost in tool life, and are suitable for use in a wide range of composites and plastics.
Features- 8 Facet design efficiently spreads out tool pressure throughout the cut, reducing delamination on exit
- High strength design maximizes MRR
- Suitable for use in a wide range of composites and plastics
- Precision manufactured in Italy
Product Specifications
| Manufacturer Part Number | C70412 |
| Drill Diameter (Inch) | 0.2280" |
| Flute Length (Inch) | 1.5000" (1-1/2) |
| Shank Diameter (Inch) | 0.2280" |
| Secondary Point Angle (Degree) | 80 Degree |
| Overall Length (Inch) | 6.000" (6) |
| Size | #1 |
| Metric | N |
| Point Angle (Degree) | 118 Degree |
| Coating | PCD |
| Substrate | PCD diamond brazed on solid carbide |
| Number of Flutes | 2 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
CoreHog
Drill Bit Size (Wire):
#1
Drill Point Angle:
118 Degree
Overall Length (Inch):
6"
Overall Length (Decimal Inch):
6.0000"
Overall Length (mm):
152.40mm
Finish/Coating:
Polycrystalline Diamond Coated
