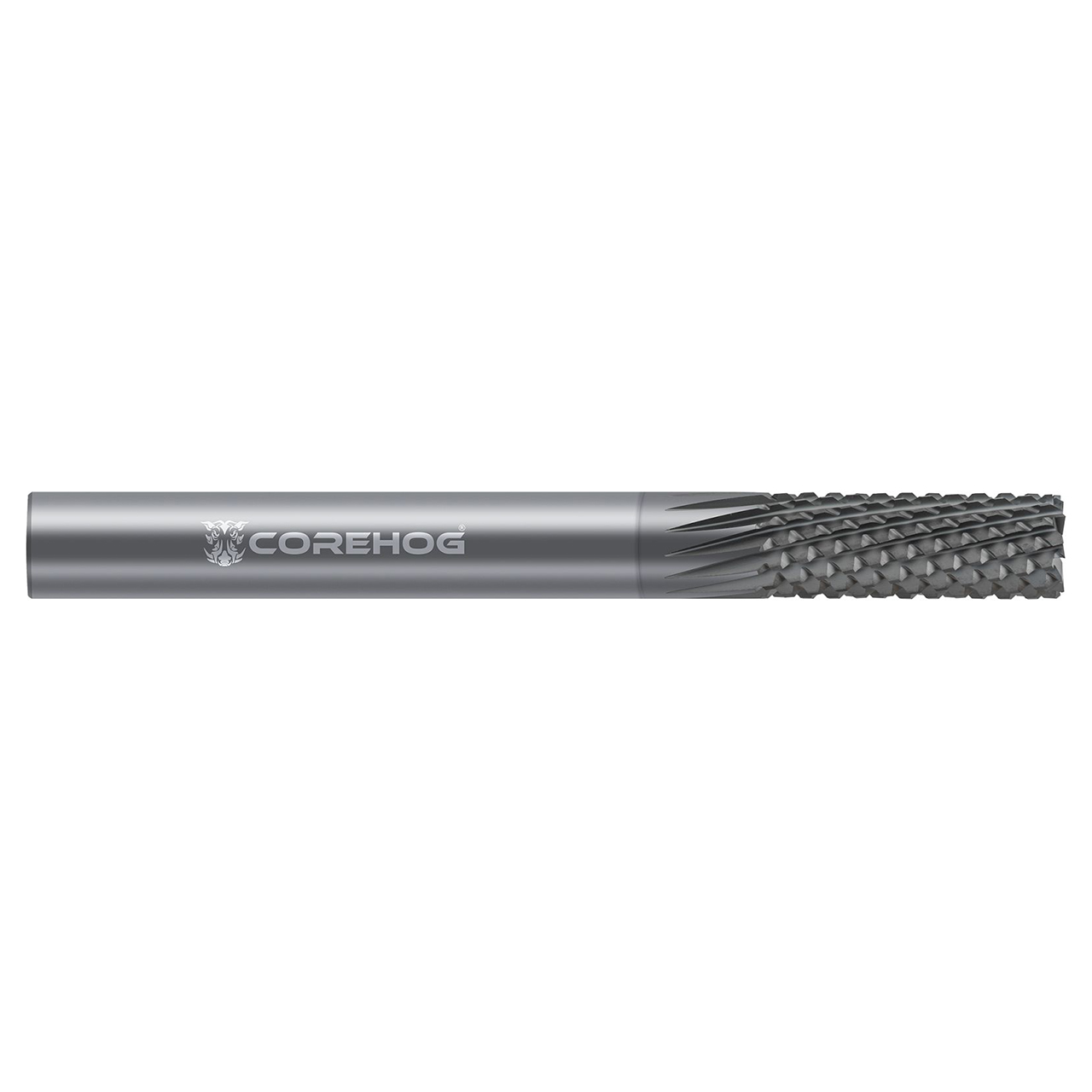

CoreHog C96237 | 0.5000" (1/2) Cutter Diameter x 0.5000" (1/2) Shank x 1.5000" (1-1/2) LOC 14 Flute Chemical Vapor Deposition Diamond Coated Solid Carbide Diamond Pattern Router Bit

$325.70
Brand:
CoreHog
Cutter Diameter (Inch):
1/2"
Cutter Diameter (Decimal Inch):
0.5000"
Number of Flutes:
14
Length of Cut (Inch):
1-1/2"
Length of Cut (Decimal Inch):
1.5000"
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Finish/Coating:
CVD Diamond
Material:
Solid Carbide
interval quantity:
1
SKU:
25231880
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Related Products

The downcut geometry of these fully stocked CoreHog CFRP routers-burr end style-downcut works to stabilize the part against the fixture, and reduces vibration, by applying downward pressure.

Features
  • Free cutting geometry minimizes delamination and provides excellent part finish
  • Burr style end allows for ramping, not suited for plunge cutting
  • Optimized for trimming CFRP and provides excellent performance in S-glass and other fiberglass materials
  • True crystalline CVD diamond coating for drastically improved hardness for outstanding abrasion resistance and higher feed rates
  • Solid carbide
  • Precision manufactured in the USA

Product Specifications
Manufacturer Part NumberC96237
Cutter Diameter (Inch)0.5000" (1/2)
Length of Cut (Inch)1.5000" (1-1/2)
Shank Diameter (Inch)0.5000" (1/2)
Overall Length (Inch)3.000" (3)
MetricN
CoatingCVD Diamond
Substratesolid carbide
Number of Flutes14
