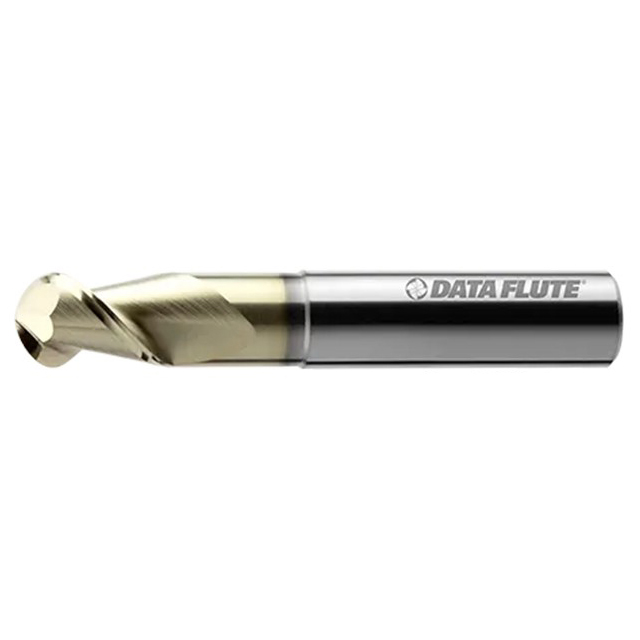

The HSM-BN is a two flute rougher/finisher that couples ARF geometries with an extended reach design. The tool provides all the advantages of the ARFs high helix, high clearance and anti-vibration margin, in a necked tool with a stub length of cut. This is your go to tool for extended reach, aluminum applications that call for a ball nose.
Features:
- High Performance Carbide
- Periphery and Pocketing Operations
- Reduced Neck for Reach and Stability
- High Helix for Chip Removal
Product Specifications
| Manufacturer Part Number | HSMBNM20750C4 |
| Diameter (Inch) | 5/8" |
| Shank Diameter (Inch) | 5/8" |
| Length of Cut (Inch) | 3/4" |
| Overall Length (Inch) | 6" |
| Coating | C4 |
| Product Type | Ball End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Data Flute
Diameter (Inch):
5/8"
Shank Diameter (Inch):
5/8"
Length of Cut (Inch):
3/4"
Overall Length (Inch):
6"
Finish/Coating:
C4
Diameter (Decimal Inch):
0.7500"
Shank Diameter (Decimal Inch):
0.7500"
interval quantity:
1
