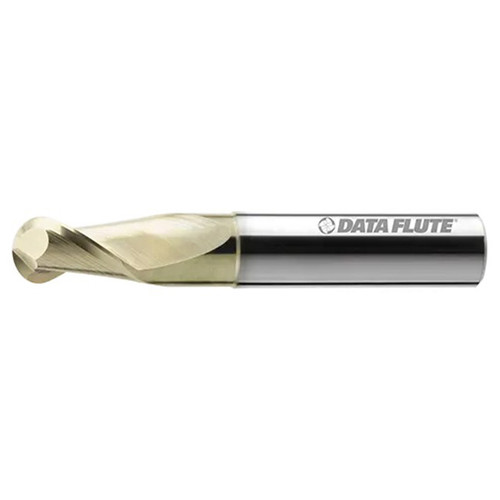

DATA FLUTE HVMBNRN20750C5 | 0.75mm Diameter x 0.75mm Shank x 1.000" LOC x 4.000" OAL Uncoated Ball End Mill

$204.42
Brand:
DATA FLUTE
Diameter (mm):
0.75mm
Shank Diameter (mm):
0.75mm
Length of Cut (Decimal Inch):
1.0000"
Overall Length (Decimal Inch):
4.0000"
Finish/Coating:
C5
interval quantity:
1
SKU:
25297322
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
DATA FLUTE HVMBNRN20750C5 | 0.75mm Diameter x 0.75mm Shank x 1.000" LOC x 4.000" OAL Uncoated Ball End Mill

This is a new series that provides HVM geometry in a 2 flute, precision ground, ball nose configuration. The HVM has a slower helix than our HSM. This helix angle can be more appropriate in applications where operators are seeking to limit or control vertical cutting forces in the Z direction.

Features:

  • High Performance Carbide
  • High Speed Machining
  • Reduced Neck for Reach and Stability
  • Full Radius Ball

Product Specifications
Manufacturer Part NumberHVMBNRN20750C5
Diameter (mm)0.75mm
Shank Diameter (mm)0.75mm
Length of Cut (Decimal Inch)1.000"
Overall Length (Decimal Inch)4.000"
CoatingC5
Product TypeBall End Mill
