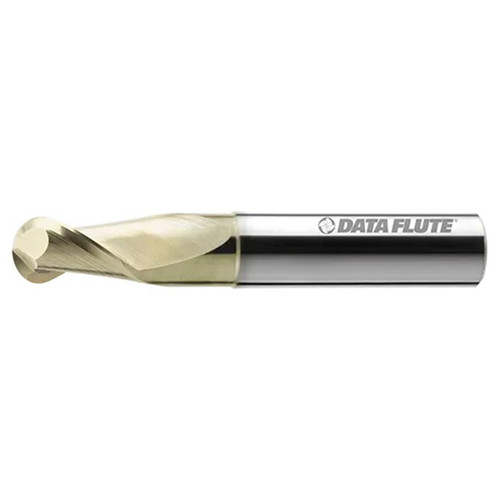

Data Flute 54324-00-D | HVMBNRNM20250C5 1/4" Diameter x 1/4" Shank x 3/8" LOC x 4" OAL Uncoated Ball End Mill

$88.17 $79.35
(You save $8.82)
Brand:
Data Flute
Diameter (Inch):
1/4"
Shank Diameter (Inch):
1/4"
Length of Cut (Inch):
3/8"
Overall Length (Inch):
4"
Finish/Coating:
Uncoated
Diameter (Decimal Inch):
0.2500"
Shank Diameter (Decimal Inch):
0.2500"
interval quantity:
1
SKU:
25297340
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Data Flute 54324-00-D | HVMBNRNM20250C5 1/4" Diameter x 1/4" Shank x 3/8" LOC x 4" OAL Uncoated Ball End Mill

This is a new series that provides HVM geometry in a 2 flute, precision ground, ball nose configuration. The HVM has a slower helix than our HSM. This helix angle can be more appropriate in applications where operators are seeking to limit or control vertical cutting forces in the Z direction.

Features:

  • High Performance Carbide
  • High Speed Machining
  • Reduced Neck for Reach and Stability
  • Full Radius Ball

Product Specifications
Manufacturer Part NumberHVMBNRNM20250C5
Diameter (Inch)1/4"
Shank Diameter (Inch)1/4"
Length of Cut (Inch)3/8"
Overall Length (Inch)4"
CoatingUncoated
Product TypeBall End Mill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Data Flute
Diameter (Inch):
1/4"
Shank Diameter (Inch):
1/4"
Length of Cut (Inch):
3/8"
Overall Length (Inch):
4"
Finish/Coating:
Uncoated
Diameter (Decimal Inch):
0.2500"
Shank Diameter (Decimal Inch):
0.2500"
interval quantity:
1
