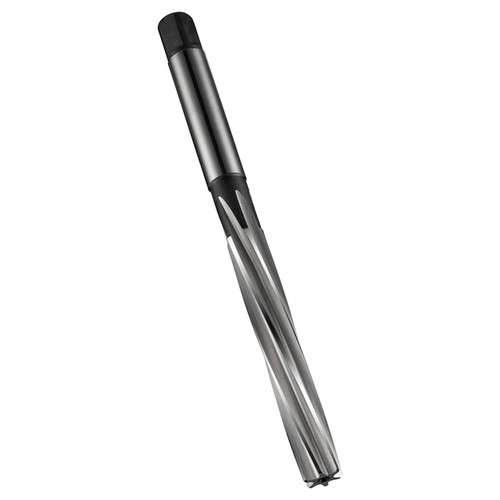

Hand reamer with left hand slow spiral flutes and a square drive, diameter 8.33mm (21/64") with an overall length of 115mm, a flute length of 58mm and 15mm long taper lead, according to DIN 206 standard for reaming precise holes within H7 tolerance, HSS with bright-steam tempered finish for machining free machining and plain carbon steel, grey and ductile cast-iron, wrought and cast aluminium and copper or copper alloys.
Product Specifications
| EDP Number | 0179765 |
| Flute Count | 6 |
| Connection Diameter (Inch) | 0.328" |
| Cutting Diameter (Inch) | 0.3281" |
| Overall Length (Inch) | 4.5276" |
| Material Code | HSS |
| Cutting Direction | Right Hand |
| Coating | Bright/ST |
| Surface Color | Bright & Blue |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
Reamer Diameter (Inch):
21/64"
Reamer Diameter (Decimal Inch):
0.3281"
Reamer Diameter (mm):
8.34mm
Overall Length (Inch):
4-17/32"
Overall Length (Decimal Inch):
4.5276"
Overall Length (mm):
115.01mm
Flute Length (Inch):
2-9/32"
Flute Length (Decimal Inch):
2.2800"
Flute Length (mm):
58mm
Material:
HSS
