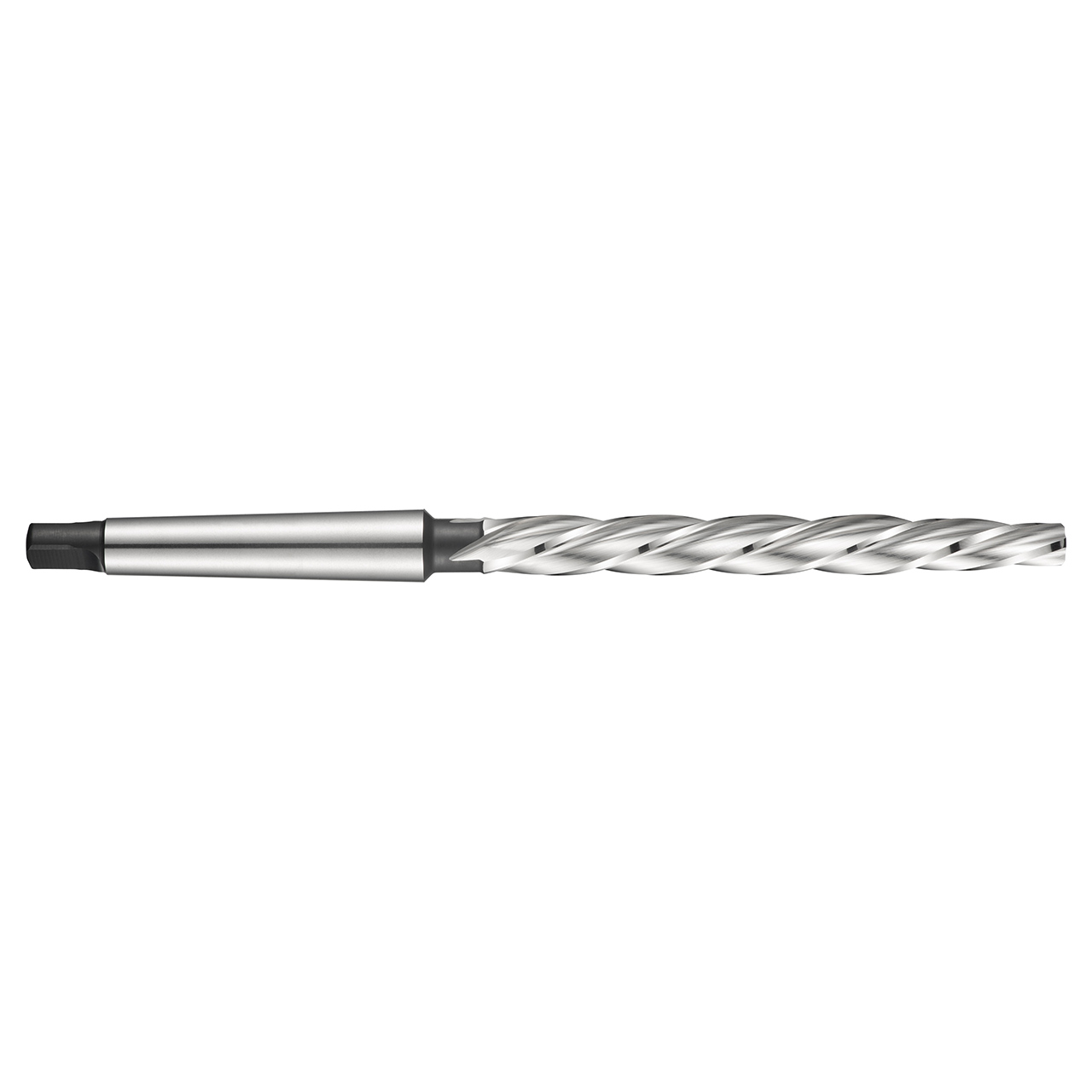

Bridge reamer with left hand fast spiral flutes and a Morse taper shank, nominal diameter 24.00mm with an overall length of 296mm, a flute length of 180mm and 72mm starting taper (1:10), according to DIN 311 standard for correcting misaligned holes in steel building structures within k11 tolerance, HSS with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys.
Product Specifications
| EDP Number | 0049167 |
| Flute Count | 4 |
| Cutting Diameter (Inch) | 0.9449" |
| Overall Length (Inch) | 11.6535" |
| Material Code | HSS |
| Cutting Direction | Right Hand |
| Coating | Bright/ST |
| Surface Color | Bright & Blue |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
Reamer Diameter (Inch):
15/16"
Reamer Diameter (Decimal Inch):
0.9449"
Reamer Diameter (mm):
24mm
Overall Length (Inch):
11-21/32"
Overall Length (Decimal Inch):
11.6535"
Overall Length (mm):
296mm
Material:
HSS
Finish/Coating:
Bright/ST
