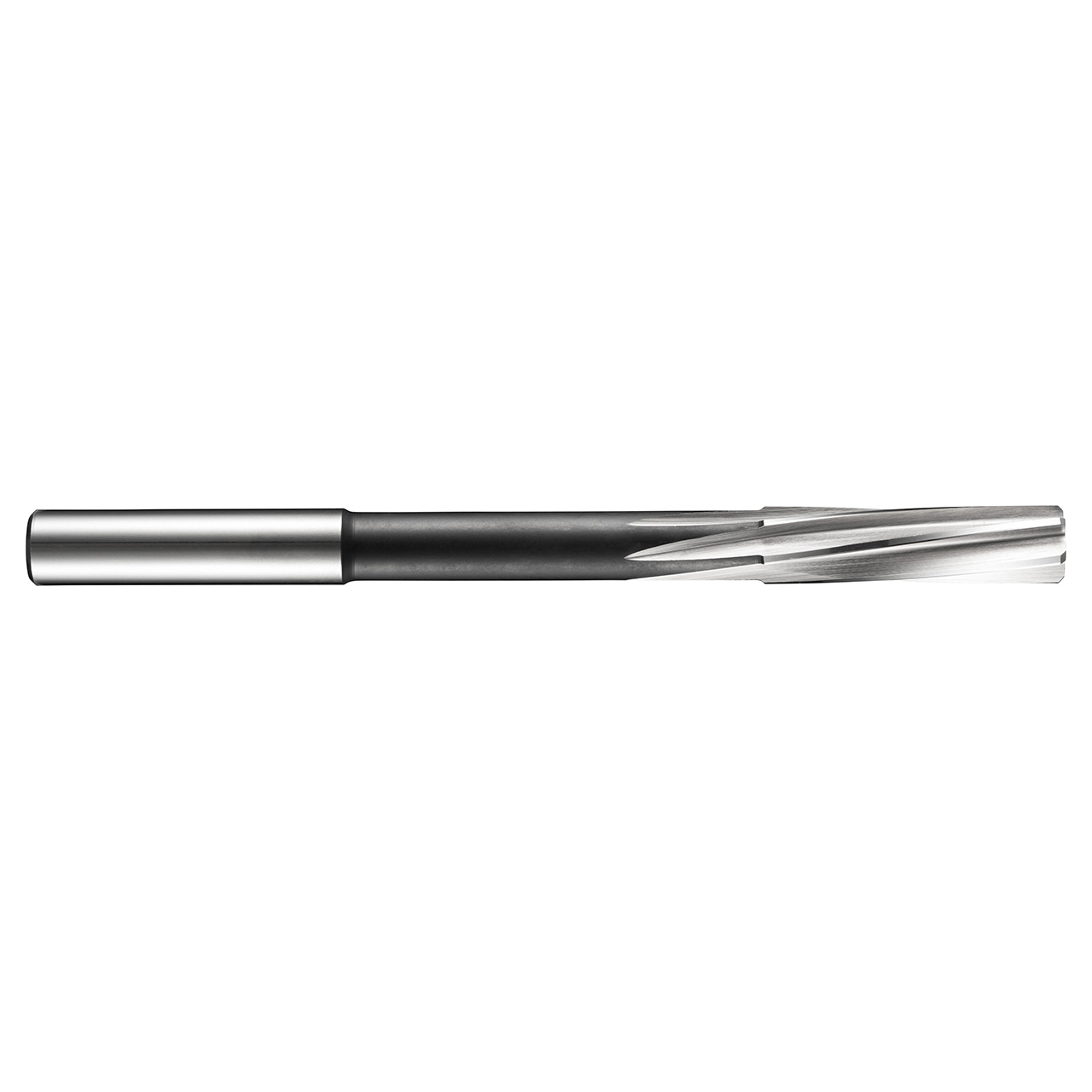

Centesimal reamer with left hand slow spiral flutes and a cylindrical shank, diameter 8.04mm with an overall length of 117mm, a flute length of 33mm and 75mm reach with neck relief, according to DIN 212 standard with a diameter tolerance of 0/+0.005mm to produce holes within diameter-tolerance 8H10, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys.
Product Specifications
| EDP Number | 0136805 |
| Flute Count | 6 |
| Connection Diameter (Inch) | 0.315" |
| Cutting Diameter (Inch) | 0.3165" |
| Body Length (mm) | 75mm |
| Overall Length (Inch) | 4.6063" |
| Material Code | HSS-E |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
Reamer Diameter (Inch):
5/16"
Reamer Diameter (Decimal Inch):
0.3165"
Reamer Diameter (mm):
8.04mm
Overall Length (Inch):
4-39/64"
Overall Length (Decimal Inch):
4.6063"
Overall Length (mm):
117mm
Flute Length (Inch):
1-19/64"
Flute Length (Decimal Inch):
1.3000"
Flute Length (mm):
33mm
Material:
HSS-E
Finish/Coating:
Bright
