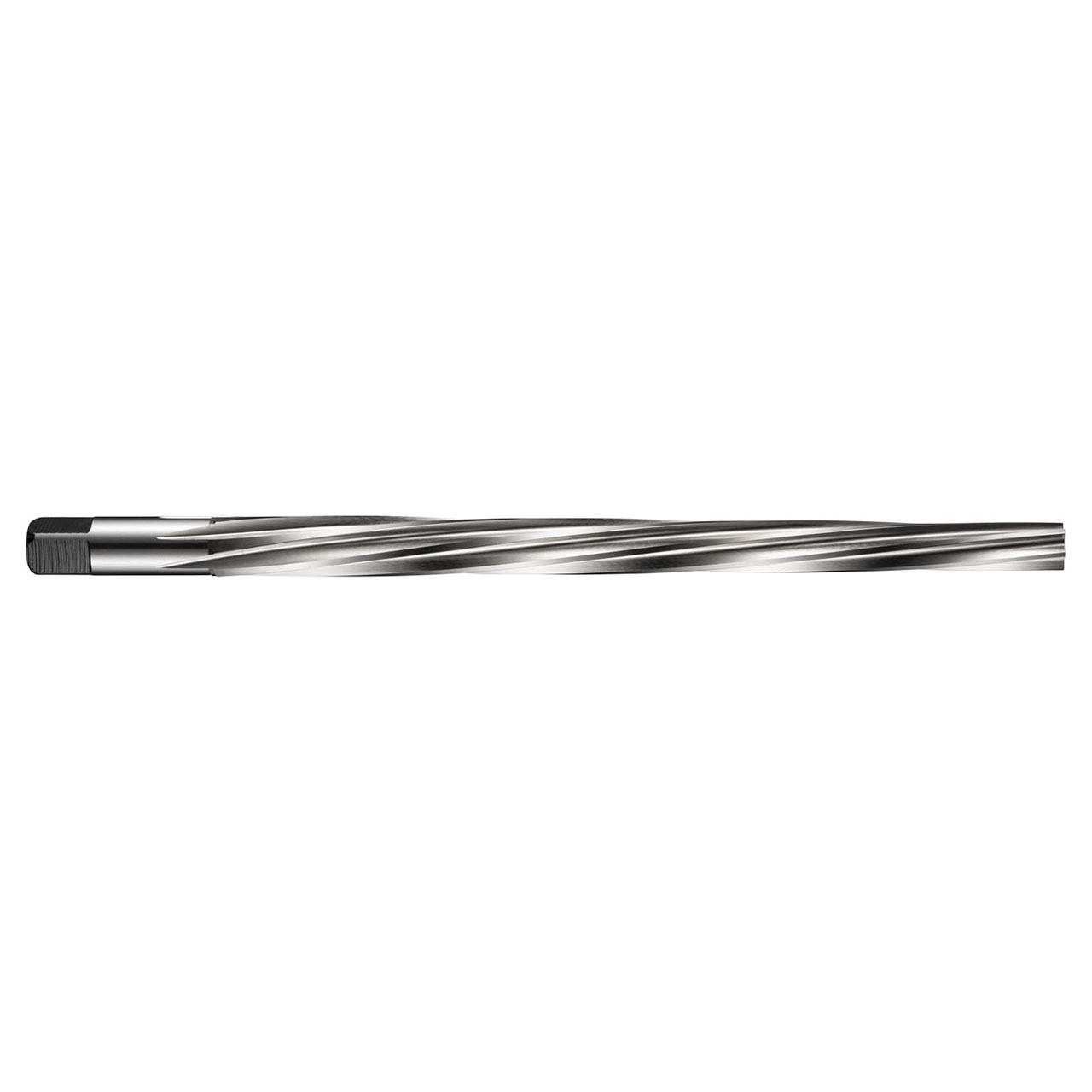

Dormer B95220.0 | 0.8819" Diameter x 12.2047" OAL 8 Flute Bright Coated Taper Pin Reamer

$743.00 $296.26
(You save $446.74)
Brand:
Dormer
Flute Length (Inch):
4-9/64"
Flute Length (Decimal Inch):
4.1300"
Flute Length (mm):
105mm
Overall Length (Inch):
7-23/64"
Overall Length (Decimal Inch):
7.3622"
Overall Length (mm):
187mm
Material:
HSS-E
Finish/Coating:
Bright
interval quantity:
1
SKU:
10114749
UPC:
7320760053812
Weight:
1.56 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Taper pin hand reamer with left hand slow spiral flutes and a square drive, small end diameter 19.80mm with an overall length of 310mm, a flute length of 250mm and 24.80mm large end diameter, according to DIN 9 standard for reaming pin holes with a 1:50 taper into which 20.00mm taper pins will fit, HSS with bright finish for machining free machining, plain carbon and alloy steel, malleable cast-iron, wrought and cast aluminium and copper or copper alloys.


Product Specifications
EDP Number0053812
Flute Count8
Connection Diameter (Inch)0.8819"
Overall Length (Inch)12.2047"
Material CodeHSS
Cutting DirectionRight Hand
CoatingBright
Surface ColorBright Silver
Country of originGermany
