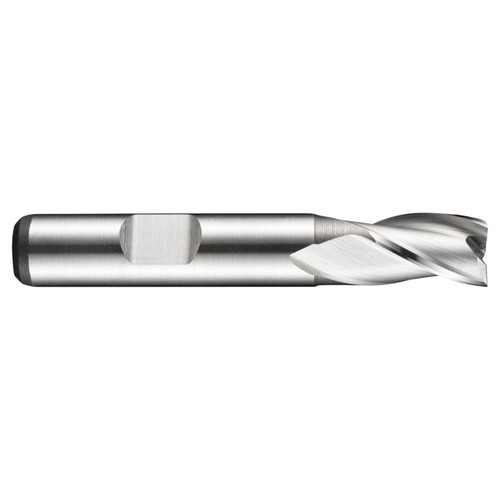

Dormer C30615.0 | 0.5906" Diameter x 2.874" OAL 3 Flute Bright Coated Slot Drill

$61.56
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
10114279
UPC:
7320760572610
Weight:
2.37 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

C306 3-flute milling cutters are manufactured from powder metal high speed cobalt for superior performance and extended tool life. The short length flute design provides high rigidity for milling shallow slots whilst the accurate diameter means you can mill standard keyway slots to P9 tolerance. The bright finish prevents workpiece material from sticking to the cutting edges of the tool for clean, accurate milling. The versatility of C306 3-flute milling cutters is confirmed by their wide range of use for plunging, ramping and profile milling in steels, stainless steels and cast iron.


Product Specifications
Usable Length (mm)27.5mm
Max Depth of Cut (mm)16mm
Connection Diameter (Inch)0.4724"
Cutting Diameter (Inch)0.5906"
Overall Length (Inch)2.874"
Material CodeHSS-E-PM
Radial Rake Angle12
No of Flute3
Flute Helix Angle30
CoatingBright
Surface ColorBright Silver
