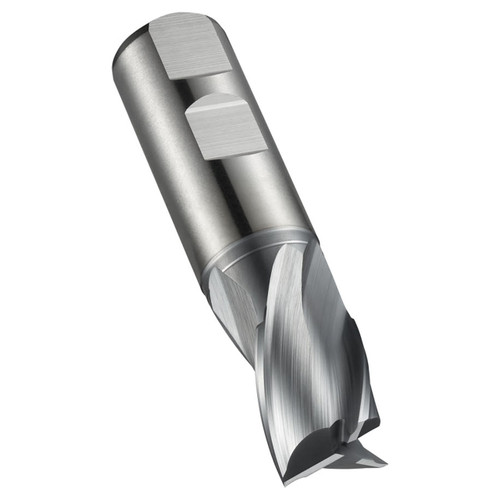

Dormer's range of milling cutters includes C353 3-flute milling cutters, manufactured from powder metal high speed cobalt and giving you longer tool life and great performance. They have a short length flute design to provide high rigidity for milling shallow keyway slots whilst the accurate diameter means they can be milled to a P9 tolerance. The Alcrona coating on these tools increases the life of the tool and gives you better performance when milling difficult to machine materials. C353 milling cutters have great versatility and are suitable for ramping, plunging and profile milling in cast iron, stainless steels and steels.
| Usable Length (mm) | 45.5mm |
| Max Depth of Cut (mm) | 26mm |
| Connection Diameter (Inch) | 0.9843" |
| Cutting Diameter (Inch) | 1.1024" |
| Overall Length (Inch) | 4.0157" |
| Material Code | HSS-E-PM |
| Radial Rake Angle | 12 |
| No of Flute | 3 |
| Flute Helix Angle | 30 |
| Coating | ALCRONA |
| Surface Color | Black-Deep Purple |
| Country of origin | Poland |
