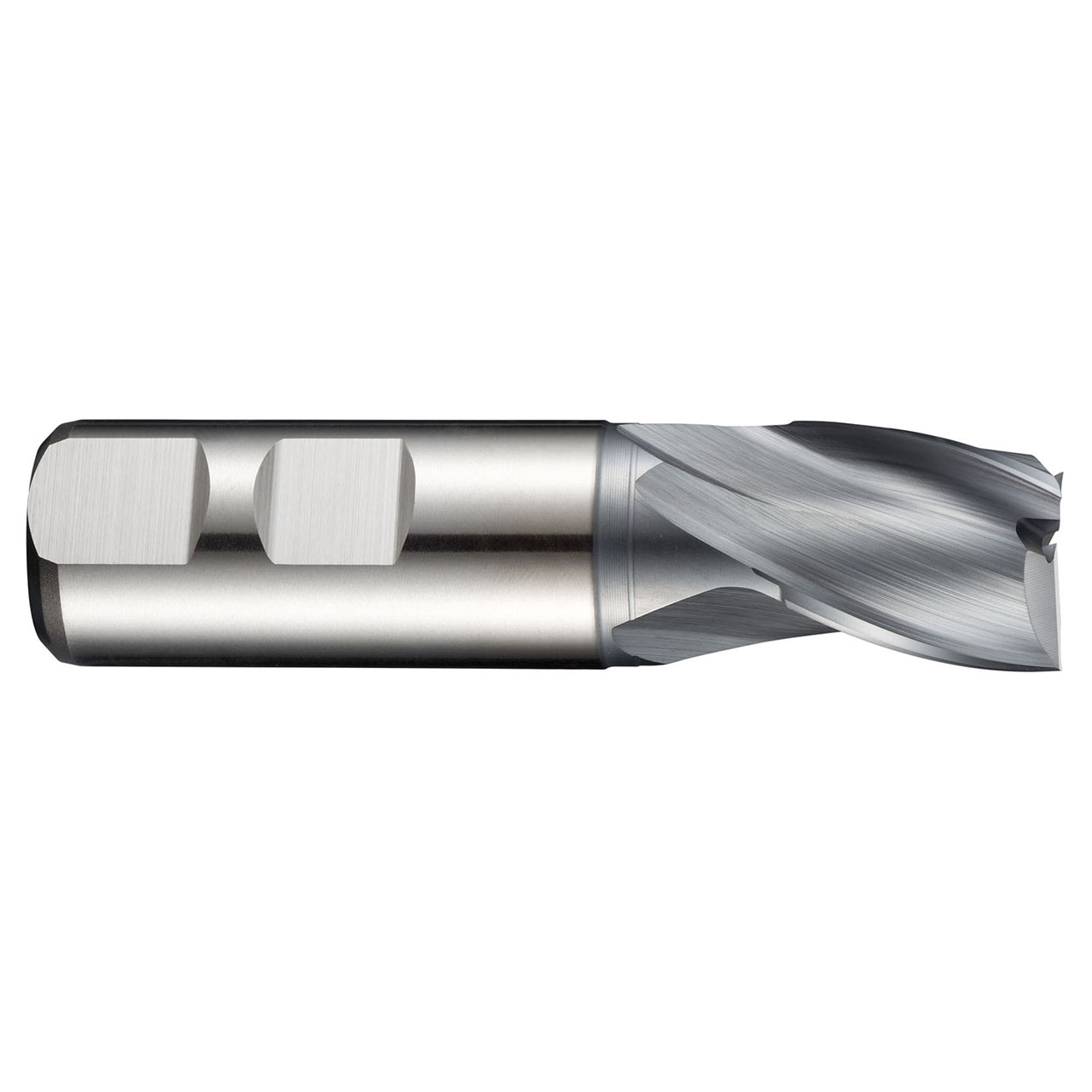

Dormer C35330.0 | 1.1811" Diameter x 4.0157" OAL 3 Flute ALCRONA Coated Slot Drill

$232.56
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
10114319
Weight:
13.63 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Dormer's range of milling cutters includes C353 3-flute milling cutters, manufactured from powder metal high speed cobalt and giving you longer tool life and great performance. They have a short length flute design to provide high rigidity for milling shallow keyway slots whilst the accurate diameter means they can be milled to a P9 tolerance. The Alcrona coating on these tools increases the life of the tool and gives you better performance when milling difficult to machine materials. C353 milling cutters have great versatility and are suitable for ramping, plunging and profile milling in cast iron, stainless steels and steels.


Product Specifications
Usable Length (mm)45.5mm
Max Depth of Cut (mm)26mm
Connection Diameter (Inch)0.9843"
Cutting Diameter (Inch)1.1811"
Overall Length (Inch)4.0157"
Material CodeHSS-E-PM
Radial Rake Angle12
No of Flute3
Flute Helix Angle30
CoatingALCRONA
Surface ColorBlack-Deep Purple
