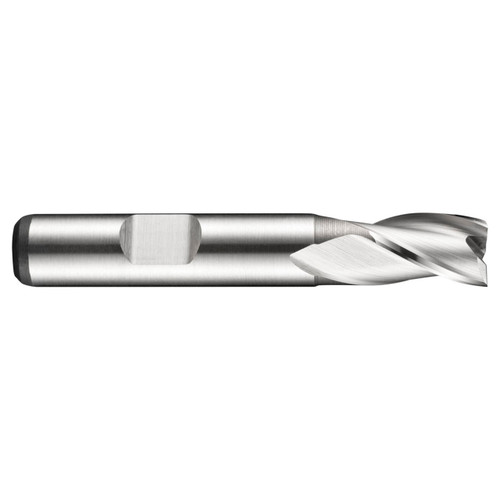

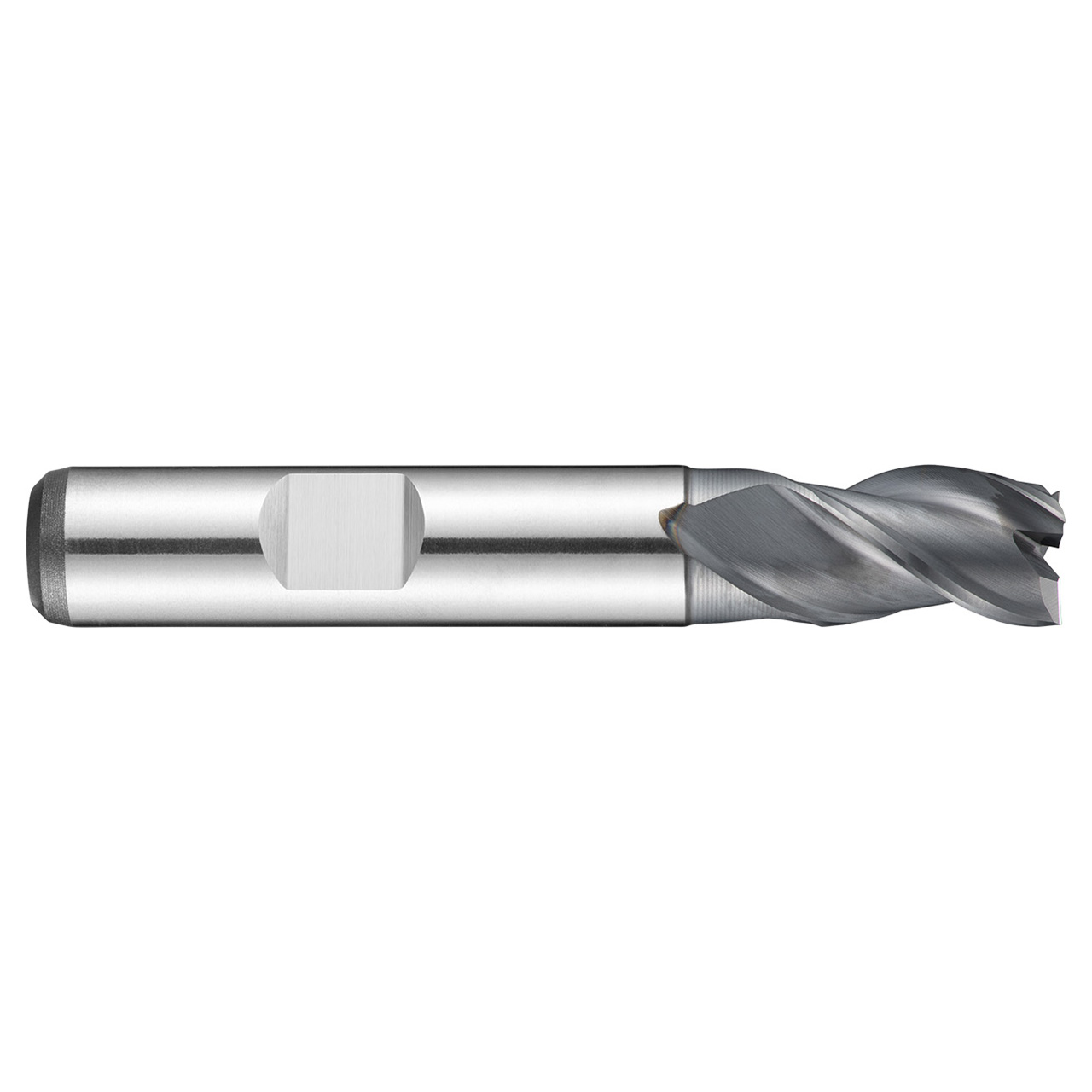

Dormer C36710.0 | 0.3937" Diameter x 2.4803" OAL 3 Flute ALCRONA Coated Slot Drill

$47.14
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
10114230
UPC:
7320760355268
Weight:
1.38 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

C367 3-flute milling cutters can be used for plunging, ramping and profile milling in steels, cast iron and stainless steels, making them very versatile. With a 40 degree helix, they are designed for high performance when machining heat resistant materials on CNC machines and have an accurate diameter, making it possible to mill standard keyway slots to a P9 tolerance. C367 milling cutters are manufactured from powder metal high speed cobalt for greatly improved performance with longer tool life, whilst the Alcrona coating further increases the life of the tool and improves performance when milling materials which are difficult to machine.


Product Specifications
Usable Length (mm)22.5mm
Max Depth of Cut (mm)13mm
Connection Diameter (Inch)0.3937"
Cutting Diameter (Inch)0.3937"
Overall Length (Inch)2.4803"
Material CodeHSS-E-PM
Radial Rake Angle15
No of Flute3
Flute Helix Angle40
CoatingALCRONA
Surface ColorBlack-Deep Purple
