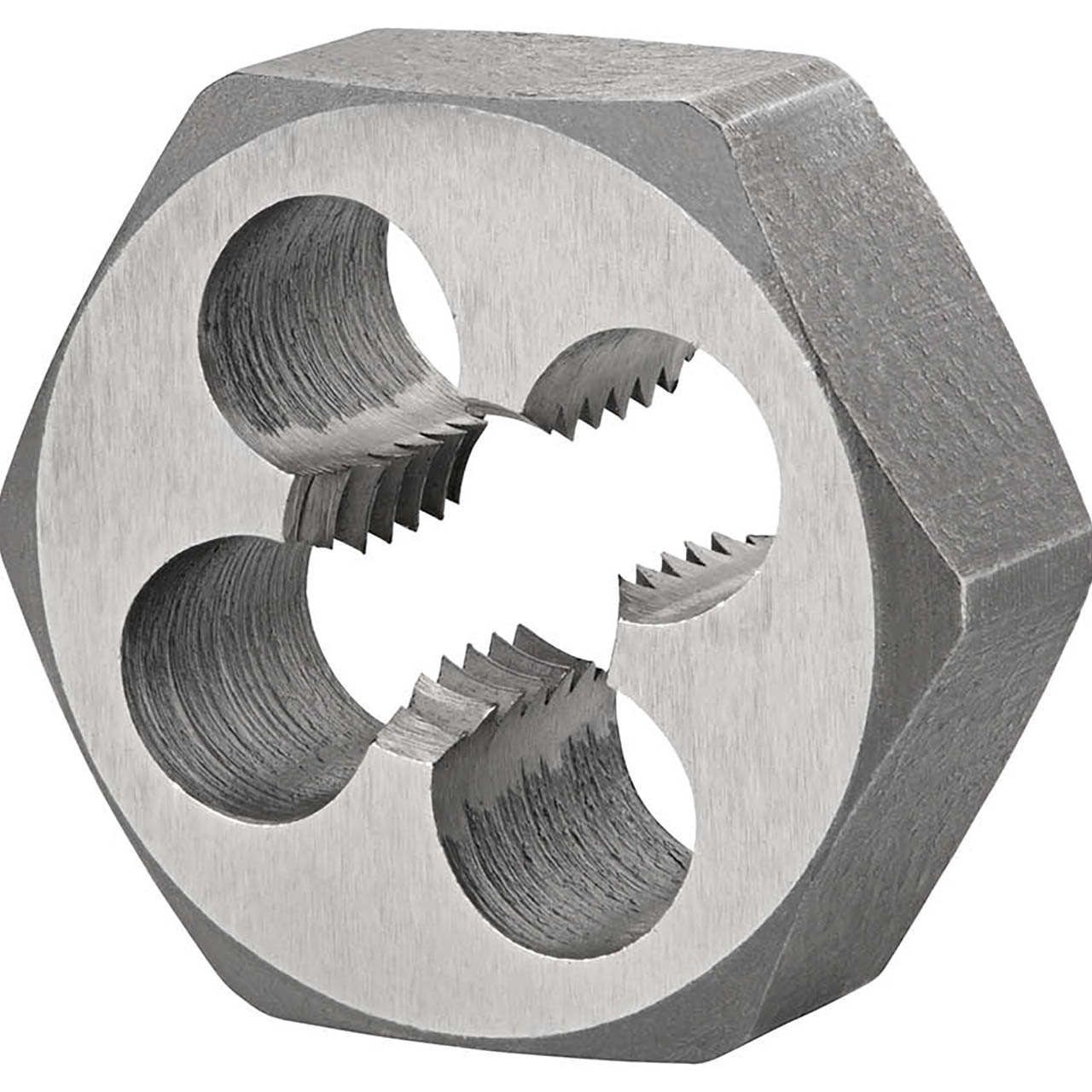

Hexagon die nut, for ISO-Metric thread M8 with 1.25mm pitch and 6g class of fit, dimensions according to DIN 382 standard with 22mm width across flat and 9mm thickness, HSS with bright finish for repairing damaged thread in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron.
Product Specifications
| Overall Length (Inch) | 0.3543" |
| Thread Diameter (mm) | 8mm |
| Thread Pitch (mm) | 1.25mm |
| Thread Diameter Size | 8 |
| Material Code | HSS |
| Thread Tolerance Class | 6g |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
| Thread Form | M-Metric coarse |
