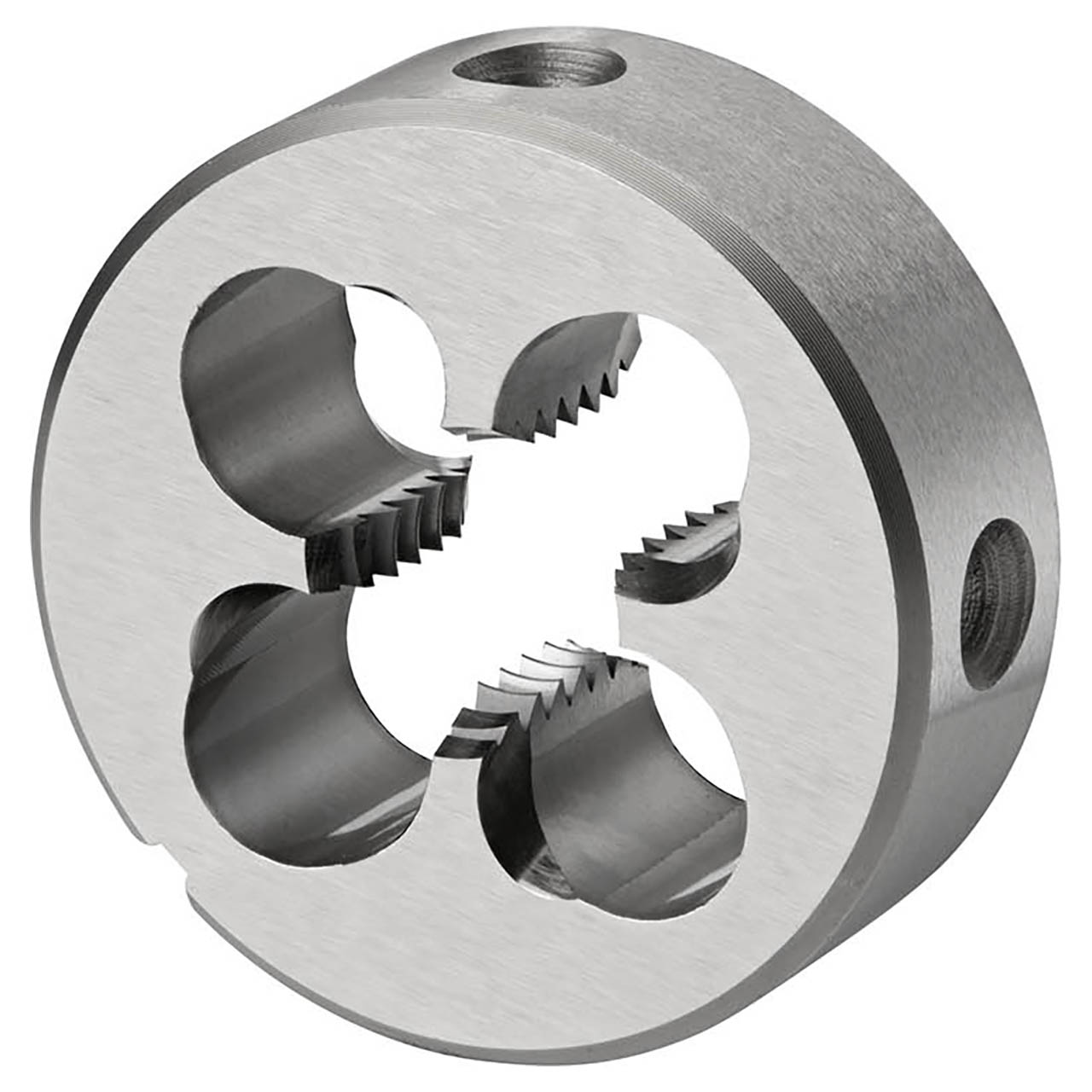

Solid round die with a gun nose, for ISO-Metric thread M8 with 1.25mm pitch and 6g class of fit, dimensions according to ISO 2568 standard with 25mm outside diameter and 9mm thickness, cobalt based HSS-E with lapped surface finish for threading in alloy and tool steel, martensitic and austenitic stainless steel and austenitic or austempered ductile cast-iron.
Product Specifications
| Body Diameter (Inch) | 0.9843" |
| Overall Length (Inch) | 0.3543" |
| Thread Diameter (mm) | 8mm |
| Thread Pitch (mm) | 1.25mm |
| Thread Diameter Size | 8 |
| Material Code | HSS-E |
| Thread Tolerance Class | 6g |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
| Thread Form | M-Metric coarse |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
