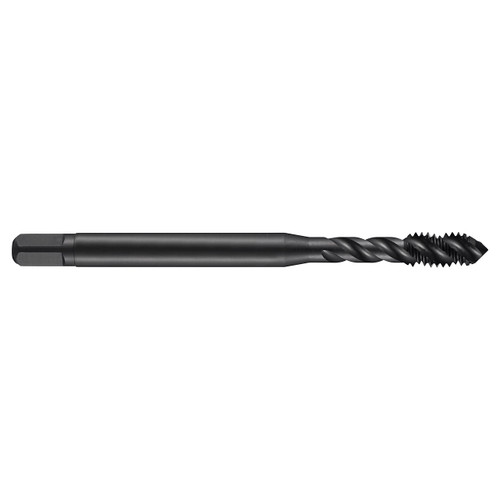

Dormer E008M10 | 0.381" Diameter x 2.9375" OAL 3 Flute Steam Tempered Coated Spiral Flute Tap

$49.08
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15024388
UPC:
7320760580745
Weight:
1.26 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M10 with 1.50mm pitch and 6H class of fit, dimensions according to ANSI standard with 0.3810" shank and 0.2860" square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications.


Product Specifications
Connection Diameter (Inch)0.381"
Overall Length (Inch)2.9375"
No of Flutes3
Flute Helix Angle45
Usable Length (Inch)1.4415"
Thread Pitch (mm)1.5mm
Thread Diameter Size10
Material CodeHSS-E-PM
Thread Tolerance Class6H
Threading Length (Inch)0.5315"
Cutting DirectionRight Hand
CoatingSteam Tempered
Tap Chamfer StyleC 2-3
Surface ColorBlack
Thread FormM-Metric coarse
