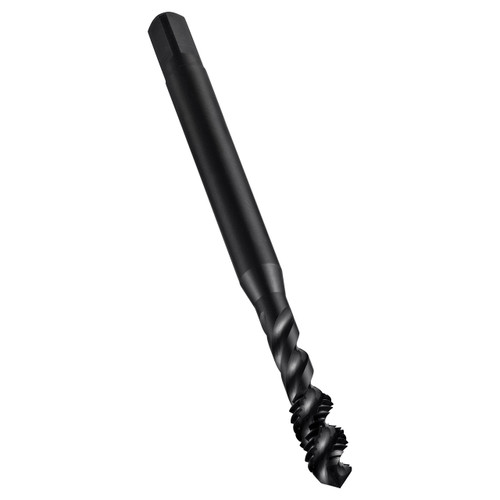

Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric Fine thread M6 with 0.75mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 6.3mm shank and 5.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications.
Product Specifications
| Connection Diameter (Inch) | 0.248" |
| Overall Length (Inch) | 2.5984" |
| Clamping Width (mm) | 5mm |
| No of Flutes | 3 |
| Flute Helix Angle | 45 |
| Usable Length (mm) | 27mm |
| Thread Pitch (mm) | 0.75mm |
| Clamping Length | 8 |
| Thread Diameter Size | 6 |
| Threading Length (mm) | 10mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 6H |
| Cutting Direction | Right Hand |
| Coating | Steam Tempered |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Black |
| Thread Form | MF-Metric fine |
