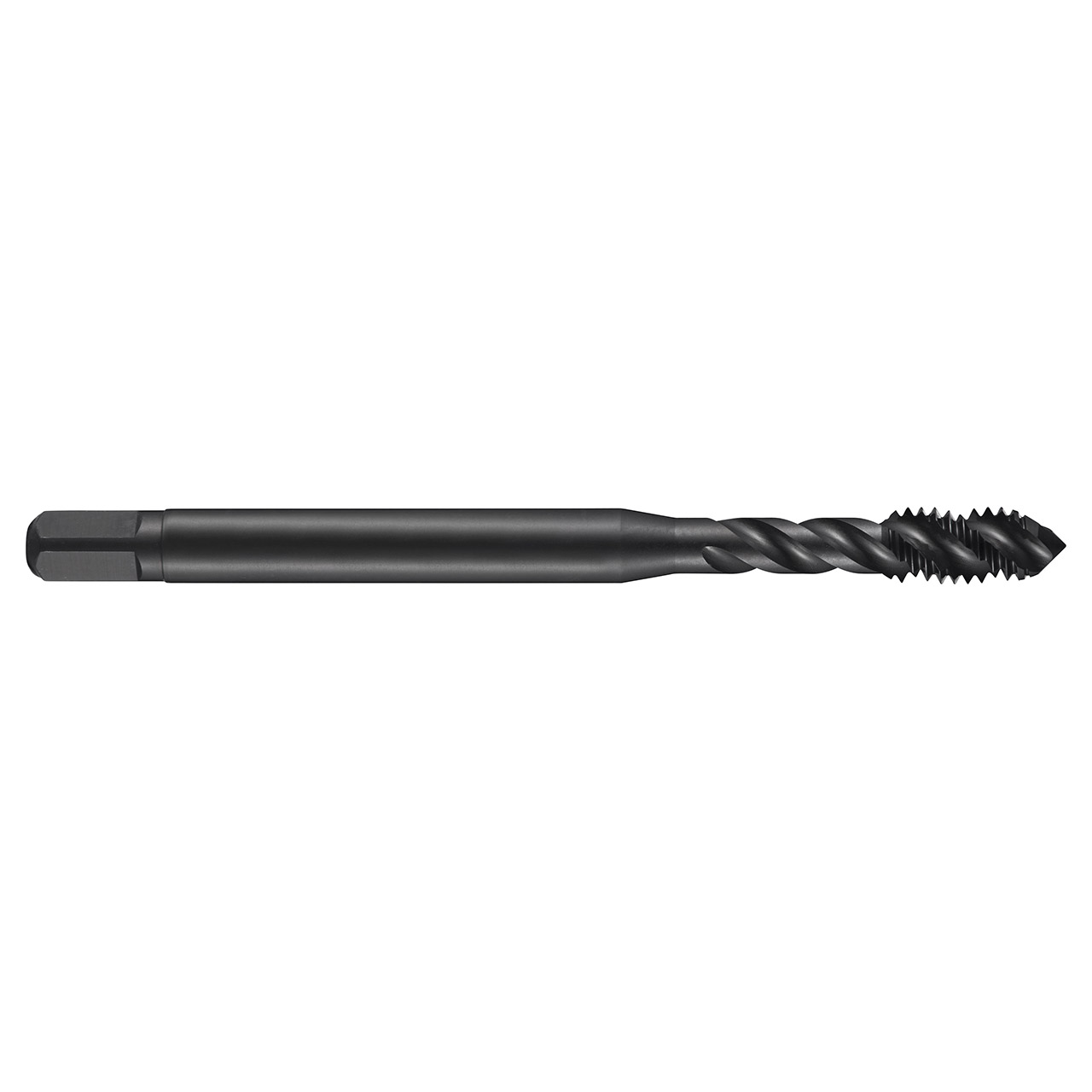

Dormer E018M10X1.0 | 0.381" Diameter x 2.9375" OAL 3 Flute Steam Tempered Coated Spiral Flute Tap

$50.40
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15024397
UPC:
7320760581049
Weight:
1.26 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Dormer's E016 machine taps are for tapping metric fine threads. They come with a spiral point, for threading through holes (holes which go all the way through the material) and have a steam tempered finish to stop workpiece material from sticking to the cutting edges of the tool so you can be sure of clean, accurate threads. The powder metal High Speed cobalt used in manufacture provides longer tool life combined with great performance, and the taps are very versatile, being suitable for tapping many materials, including steels, stainless steels and aluminium. E008 machine taps for metric fine threads are manufactured to ANSI standards. .


Product Specifications
Connection Diameter (Inch)0.381"
Overall Length (Inch)2.9375"
No of Flutes3
Flute Helix Angle45
Usable Length (Inch)1.4415"
Thread Pitch (mm)1mm
Thread Diameter Size10
Material CodeHSS-E-PM
Thread Tolerance Class6H
Threading Length (Inch)0.5315"
Cutting DirectionRight Hand
CoatingSteam Tempered
Tap Chamfer StyleC 2-3
Surface ColorBlack
Thread FormMF-Metric fine
