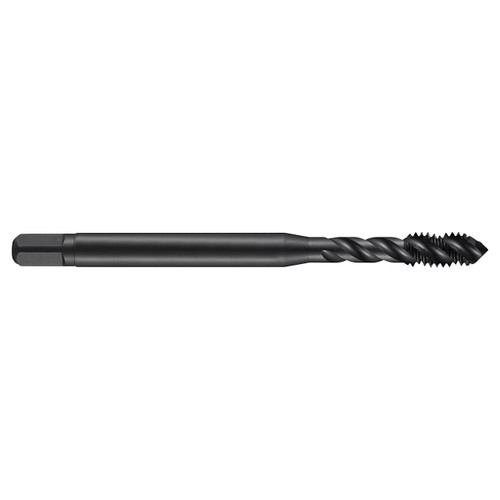

Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for Unified National Coarse thread UNC 3/8" with 16 TPI and 0.005" oversize equivalent to H11 pitch diameter limits, dimensions according to ANSI standard with 0.3810" shank and 0.2860" square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications.
Product Specifications
| Connection Diameter (Inch) | 0.381" |
| Overall Length (Inch) | 2.9375" |
| No of Flutes | 3 |
| Usable Length (Inch) | 1.2915" |
| Thread Diameter Size | 3/8 |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 3B |
| Threading Length (Inch) | 0.602" |
| Cutting Direction | Right Hand |
| Coating | Steam Tempered |
| Tap Chamfer Style | B 3.5-5 |
| Surface Color | Black |
| Thread Form | UNC-Unified Coarse |
| Country of origin | Brazil |
