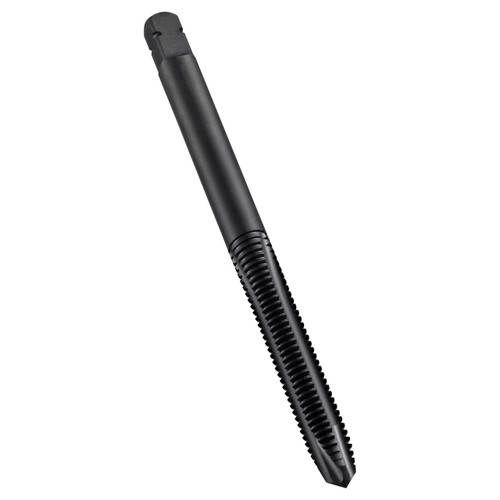

Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for Unified National Fine thread UNF 5/16" with 24 TPI and 2B class of fit, dimensions according to ISO 529 standard with 8.0mm shank and 6.3mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications.
Product Specifications
| Connection Diameter (Inch) | 0.315" |
| Overall Length (Inch) | 2.8346" |
| Clamping Width (mm) | 6.3mm |
| Thread Diameter (mm) | 7.938mm |
| No of Flutes | 3 |
| Usable Length (mm) | 29mm |
| Clamping Length | 9 |
| Thread Diameter Size | 5/16 |
| Threading Length (mm) | 16mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 2B |
| Cutting Direction | Right Hand |
| Coating | Steam Tempered |
| Tap Chamfer Style | B 3.5-5 |
| Surface Color | Black |
| Thread Form | UNF-Unified Fine |
