Dormer E102M5NO8 | 0.2362" Diameter x 0.8mm Pitch x 1.9685" OAL 3 Flute Steam Tempered Coated Tap Set

$69.75
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15022097
Weight:
1.06 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

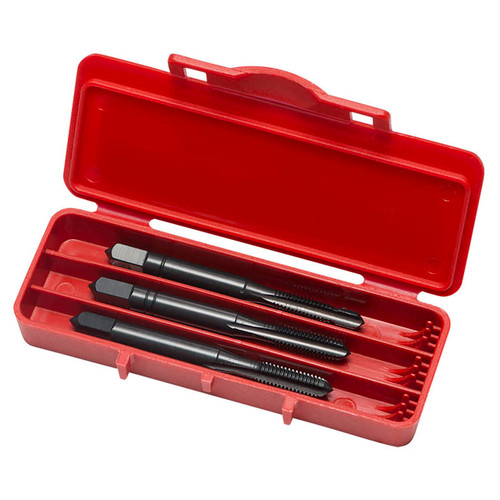

Set of straight flute serial taps NO8 for ISO-Metric thread M5 with 0.80mm pitch and 6HX class of fit, consisting of 1 tap with a truncated thread profile and 6-8xP taper lead, 1 tap with a truncated thread profile and 3.5-5xP plug lead and 1 tap with a 2-3xP semi-bottoming lead, dimensions according to DIN 352 standard with 6.0mm shank and 4.9mm square drive, cobalt based HSS-E with steam tempered surface finish for 1.5xD through or blind hole threading in stainless steel and cast-iron.


Product Specifications
Connection Diameter (Inch)0.2362"
Overall Length (Inch)1.9685"
Clamping Width (mm)4.9mm
No of Flutes3
Thread Pitch (mm)0.8mm
Thread Diameter Size5
Threading Length (mm)14mm
Material CodeHSS-E
Thread Tolerance Class6HX
Cutting DirectionRight Hand
CoatingSteam Tempered
Tap Chamfer StyleC 2-3
Surface ColorBlack
Thread FormM-Metric coarse
