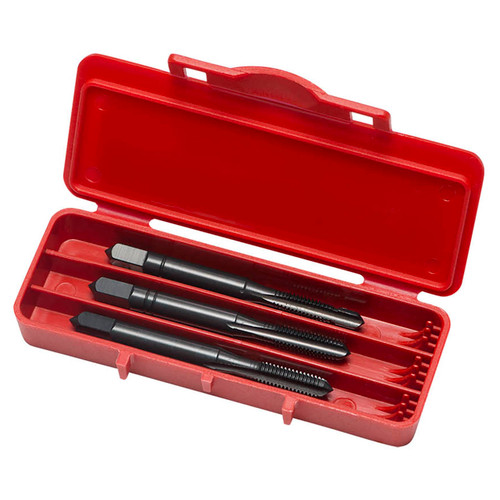

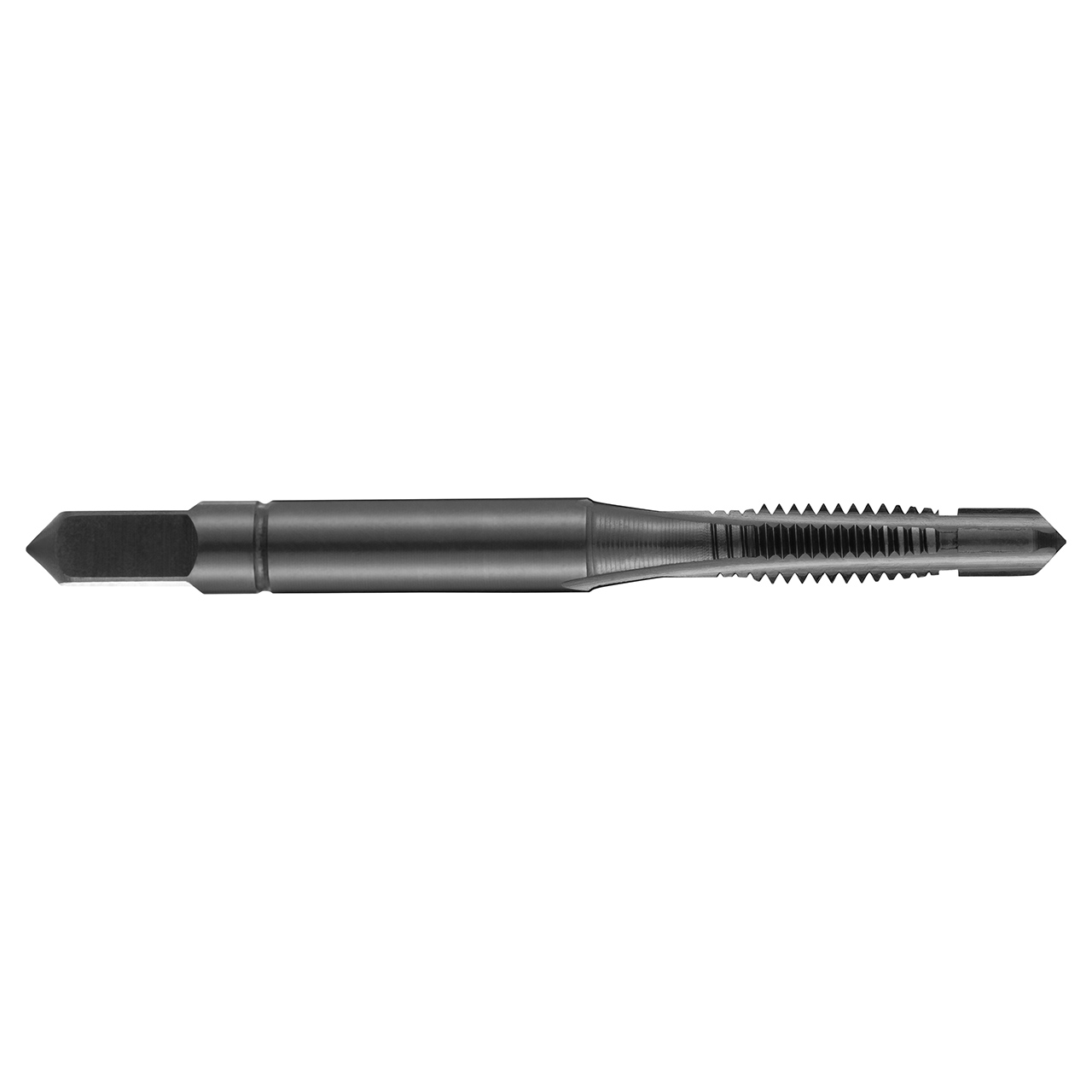

Set of straight flute serial taps NO8 for ISO-Metric thread M6 with 1.00mm pitch and 6HX class of fit, consisting of 1 tap with a truncated thread profile and 6-8xP taper lead, 1 tap with a truncated thread profile and 3.5-5xP plug lead and 1 tap with a 2-3xP semi-bottoming lead, dimensions according to DIN 352 standard with 6.0mm shank and 4.9mm square drive, cobalt based HSS-E with steam tempered surface finish for 1.5xD through or blind hole threading in stainless steel and cast-iron.
Product Specifications
| Connection Diameter (Inch) | 0.2362" |
| Overall Length (Inch) | 2.2047" |
| Clamping Width (mm) | 4.9mm |
| No of Flutes | 3 |
| Thread Pitch (mm) | 1mm |
| Thread Diameter Size | 6 |
| Threading Length (mm) | 16mm |
| Material Code | HSS-E |
| Thread Tolerance Class | 6HX |
| Cutting Direction | Right Hand |
| Coating | Steam Tempered |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Black |
| Thread Form | M-Metric coarse |
