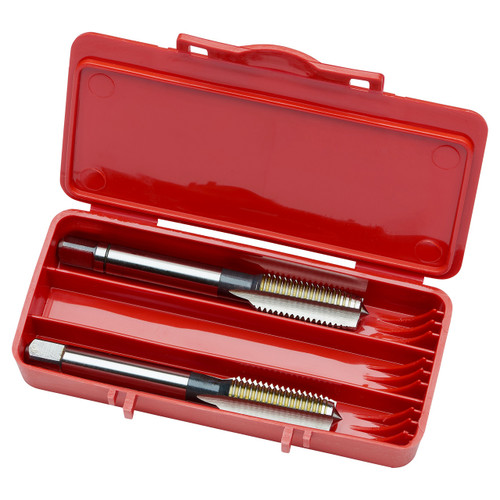

Set of straight flute serial taps NO9 for ISO-Metric Fine thread M30 with 2.00mm pitch and 6H class of fit, consisting of 1 tap with a truncated thread profile and 3.5-5xP plug lead and 1 tap with a 2-3xP semi-bottoming lead, dimensions according to DIN 2181 standard with 22.0mm shank and 18.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and non-ferrous metals.
| Connection Diameter (Inch) | 0.8661" |
| Overall Length (Inch) | 3.5433" |
| Clamping Width (mm) | 18mm |
| No of Flutes | 4 |
| Thread Pitch (mm) | 2mm |
| Thread Diameter Size | 30 |
| Threading Length (mm) | 22mm |
| Material Code | HSS |
| Thread Tolerance Class | 6H |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Bright Silver |
| Thread Form | MF-Metric fine |
| Country of origin | Brazil |
