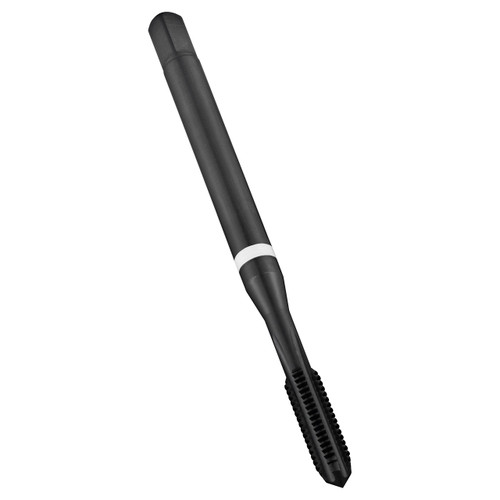

Dormer 5975694 | M5x0.80mm Thread Size x 6.00mm Shank x 13.00mm Length x 70.00mm OAL M 6HX 4 Flute Steam Tempered Coated HSS-E-PM E201 Straight Flute Tap

$53.80 $24.21
(You save $29.59)
Brand:
Dormer
Thread Limit:
6HX
Overall Length (Decimal Inch):
2.7559"
Overall Length (mm):
70.00mm
Number of Flutes:
4
Material:
HSS-E-PM
Finish/Coating:
Steam Tempered
Thread Direction:
Right Hand
Through Coolant:
No
Thread Standard:
DIN 371
interval quantity:
1
SKU:
15022354
UPC:
7320760085202
Weight:
0.03 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Straight flute tap White Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M5 with 0.80mm pitch and 6HX class of fit, dimensions according to DIN 371 standard with 6.0mm shank and 4.9mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers.


Product Specifications
Connection Diameter (Inch)0.2362"
Overall Length (Inch)2.7559"
Clamping Width (mm)4.9mm
No of Flutes4
Usable Length (mm)25mm
Thread Pitch (mm)0.8mm
Clamping Length8
Thread Diameter Size5
Threading Length (mm)13mm
Material CodeHSS-E-PM
Thread Tolerance Class6HX
Cutting DirectionRight Hand
CoatingSteam Tempered
Tap Chamfer StyleC 2-3
Surface ColorBlack
Thread FormM-Metric coarse
Country of originBrazil
