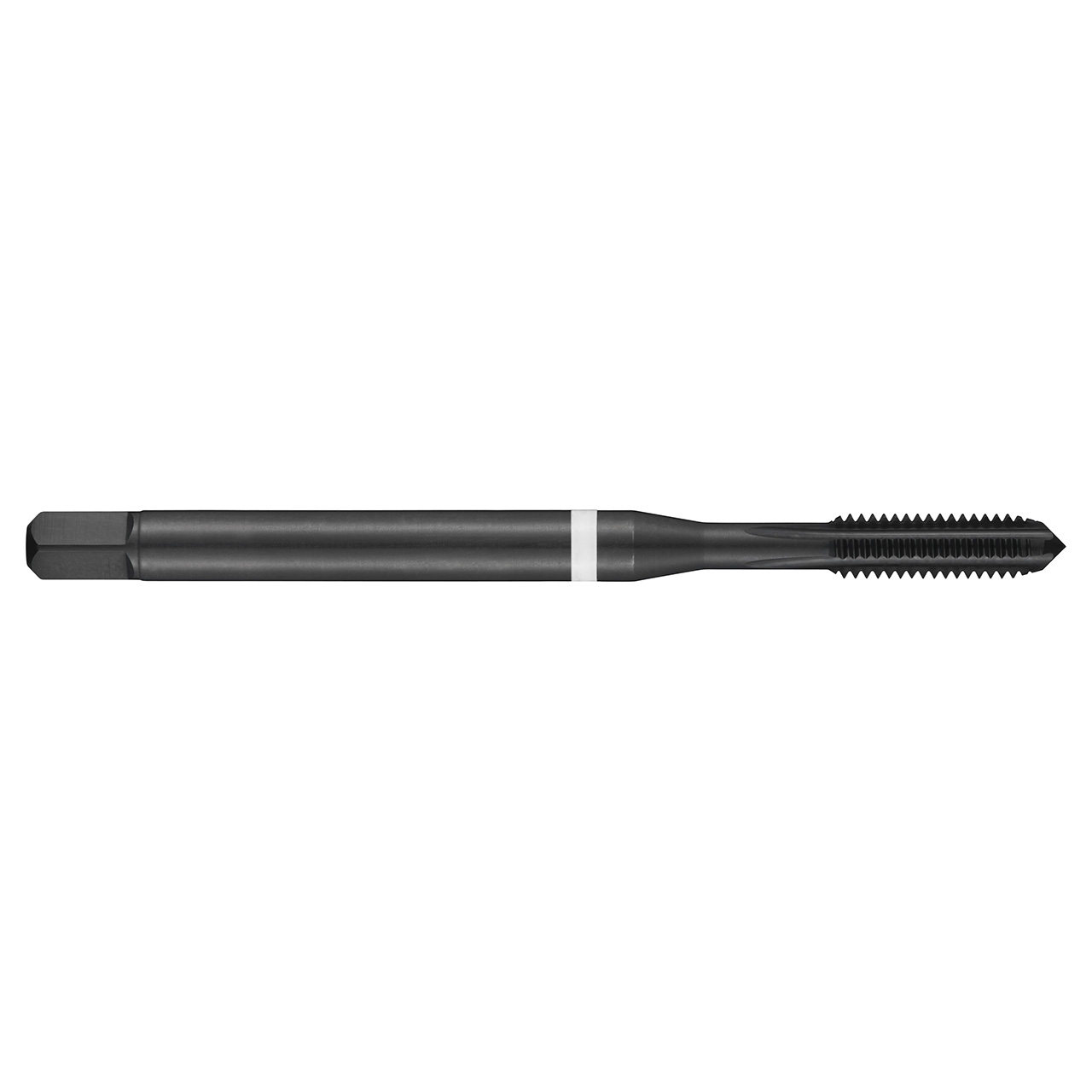

Dormer 5975698 | M8x1.25mm Thread Size x 8.00mm Shank x 18.00mm Length x 90.00mm OAL M 6HX 4 Flute Steam Tempered Coated HSS-E-PM E201 Straight Flute Tap

$61.60 $27.72
(You save $33.88)
Brand:
Dormer
Thread Limit:
6HX
Overall Length (Decimal Inch):
3.5433"
Overall Length (mm):
90.00mm
Number of Flutes:
4
Material:
HSS-E-PM
Finish/Coating:
Steam Tempered
Thread Direction:
Right Hand
Through Coolant:
No
Thread Standard:
DIN 371
interval quantity:
1
SKU:
15022356
UPC:
7320760085226
Weight:
0.07 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Straight flute tap White Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M8 with 1.25mm pitch and 6HX class of fit, dimensions according to DIN 371 standard with 8.0mm shank and 6.2mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers.


Product Specifications
Connection Diameter (Inch)0.315"
Overall Length (Inch)3.5433"
Clamping Width (mm)6.2mm
No of Flutes4
Usable Length (mm)35mm
Thread Pitch (mm)1.25mm
Clamping Length9
Thread Diameter Size8
Threading Length (mm)18mm
Material CodeHSS-E-PM
Thread Tolerance Class6HX
Cutting DirectionRight Hand
CoatingSteam Tempered
Tap Chamfer StyleC 2-3
Surface ColorBlack
Thread FormM-Metric coarse
Country of originBrazil
