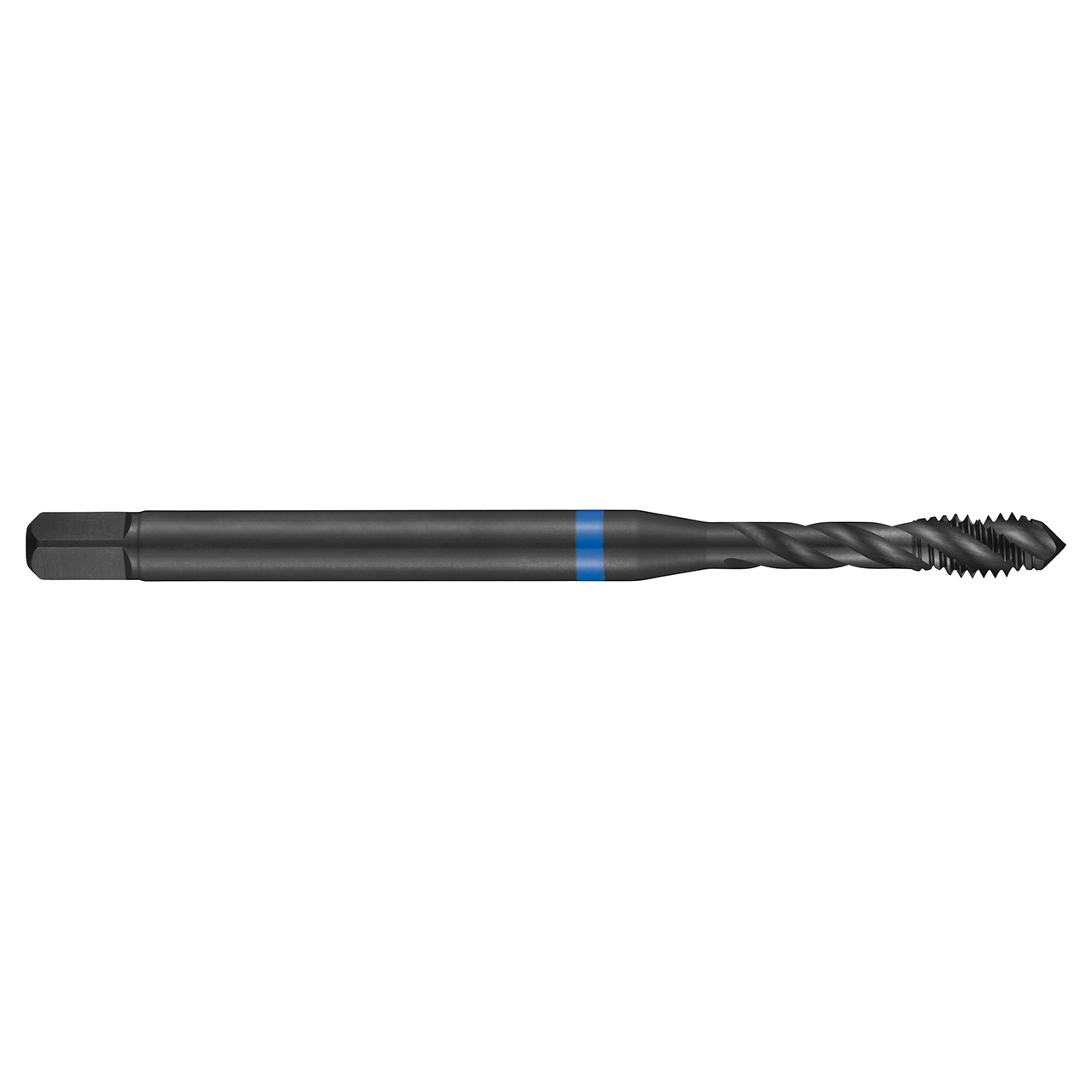

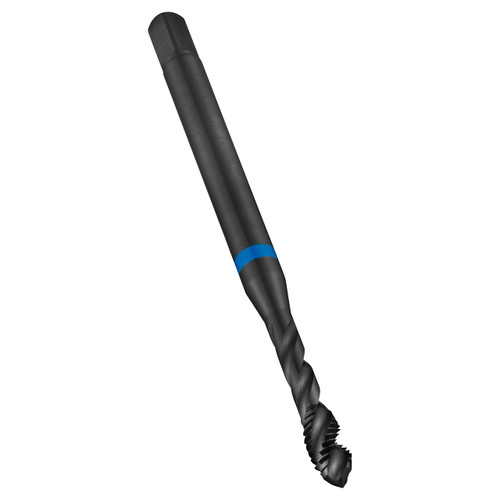

Dormer E238M24 | 0.7087" Diameter x 6.2992" OAL 4 Flute Steam Tempered Coated Spiral Flute Tap

$154.80
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15026606
UPC:
7320760664094
Weight:
10.12 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Spiral flute tap Blue Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M24 with 3.00mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 18.0mm shank and 14.5mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 40° helix angle for 2.5xD blind hole threading in stainless steel.


Product Specifications
Connection Diameter (Inch)0.7087"
Overall Length (Inch)6.2992"
Clamping Width (mm)14.5mm
No of Flutes4
Flute Helix Angle40
Thread Pitch (mm)3mm
Clamping Length17
Thread Diameter Size24
Threading Length (mm)30mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingSteam Tempered
Tap Chamfer StyleC 2-3
Surface ColorBlack
Thread FormM-Metric coarse
