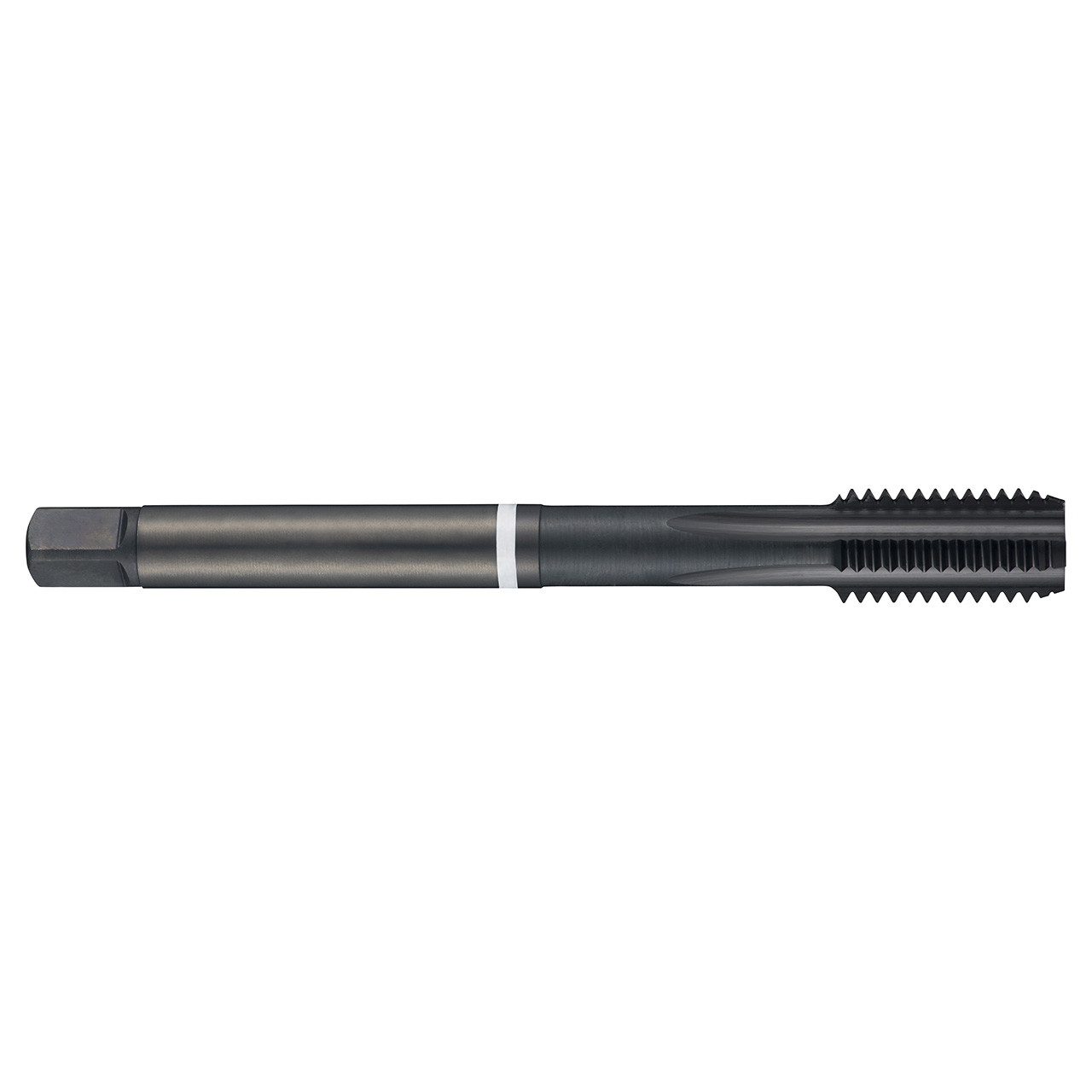

Straight flute tap White Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M8 with 1.25mm pitch and 6HX class of fit, dimensions according to DIN 376 standard with 6.0mm shank and 4.9mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers.
Product Specifications
| Connection Diameter (Inch) | 0.2362" |
| Overall Length (Inch) | 3.5433" |
| Clamping Width (mm) | 4.9mm |
| No of Flutes | 4 |
| Thread Pitch (mm) | 1.25mm |
| Clamping Length | 8 |
| Thread Diameter Size | 8 |
| Threading Length (mm) | 18mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 6HX |
| Cutting Direction | Right Hand |
| Coating | Steam Tempered |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Black |
| Thread Form | M-Metric coarse |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
