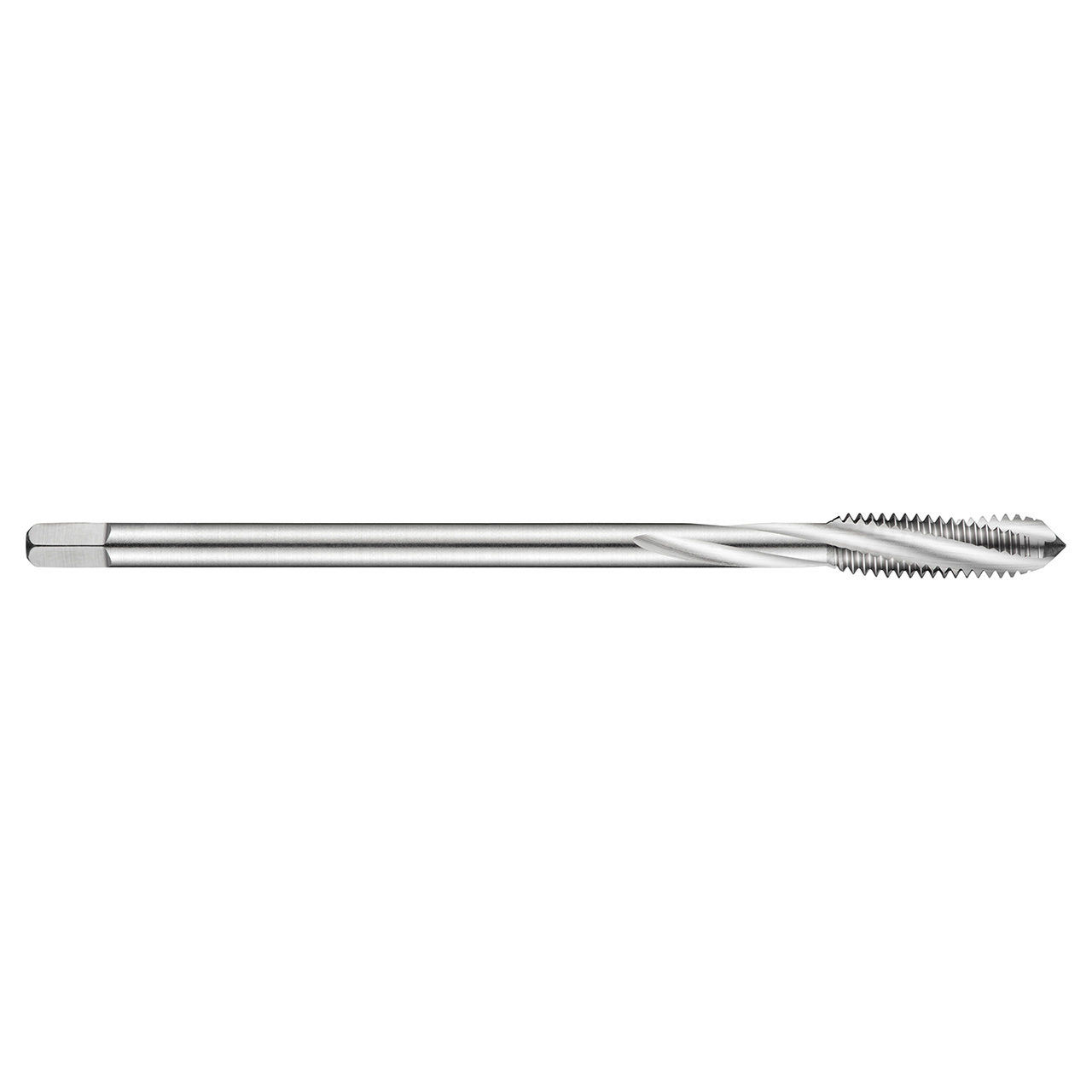

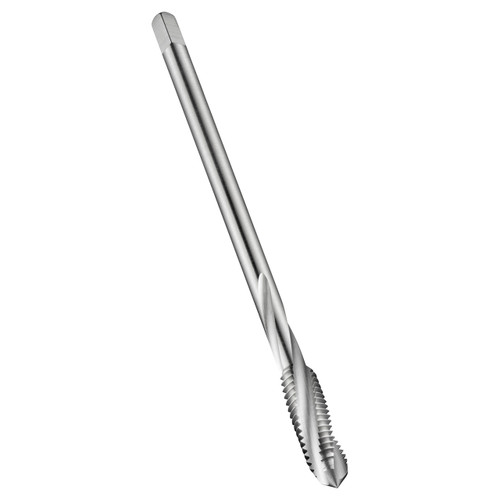

Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M4 with 0.70mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 2.8mm shank and 2.1mm square drive, powder metallurgical HSS-E with bright finish and 15° helix angle for 1.5xD blind hole threading in alloy steel.
Product Specifications
| Connection Diameter (Inch) | 0.1102" |
| Overall Length (Inch) | 2.4803" |
| Clamping Width (mm) | 2.1mm |
| No of Flutes | 3 |
| Flute Helix Angle | 15 |
| Thread Pitch (mm) | 0.7mm |
| Clamping Length | 5 |
| Thread Diameter Size | 4 |
| Threading Length (mm) | 12mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 6H |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Bright Silver |
| Thread Form | M-Metric coarse |
