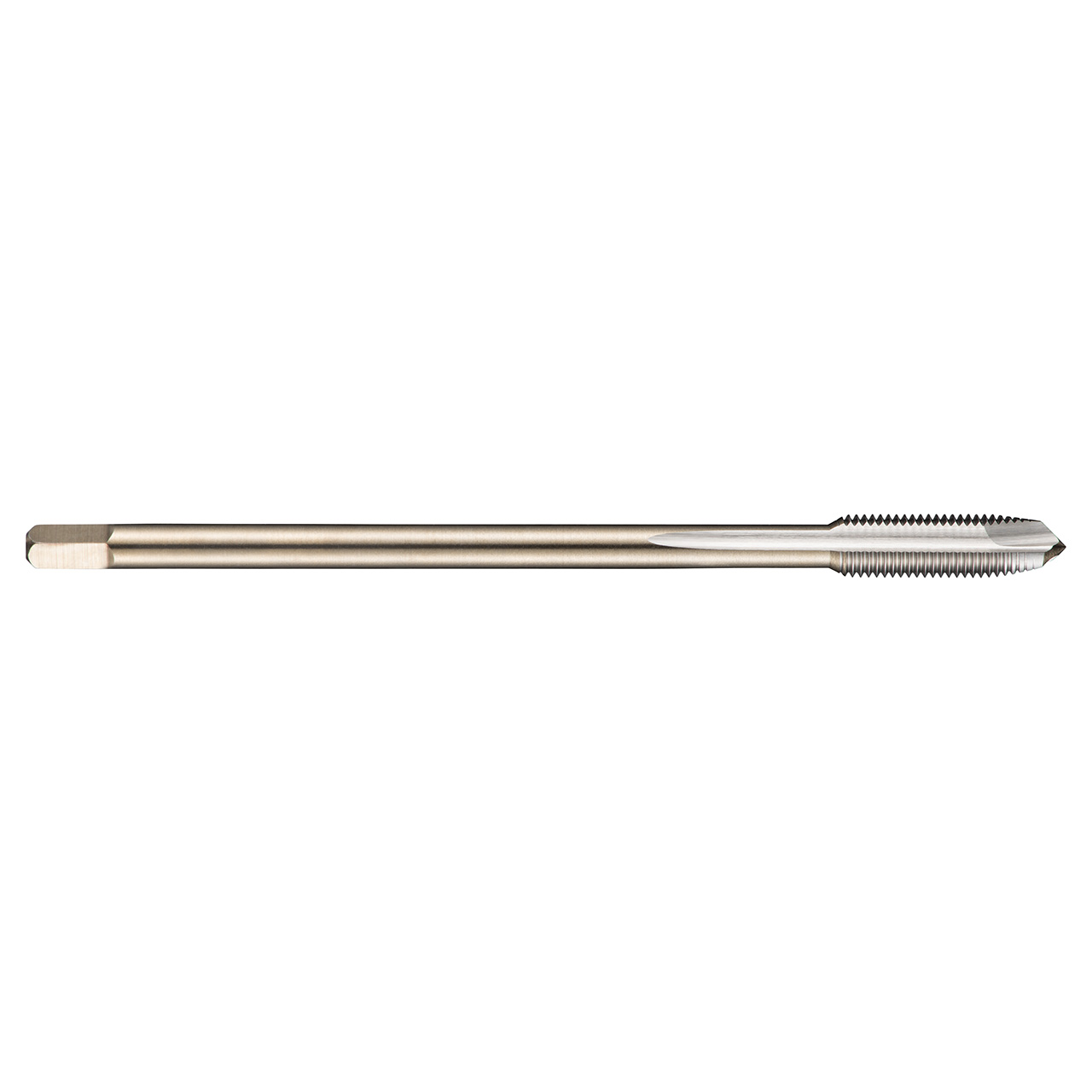

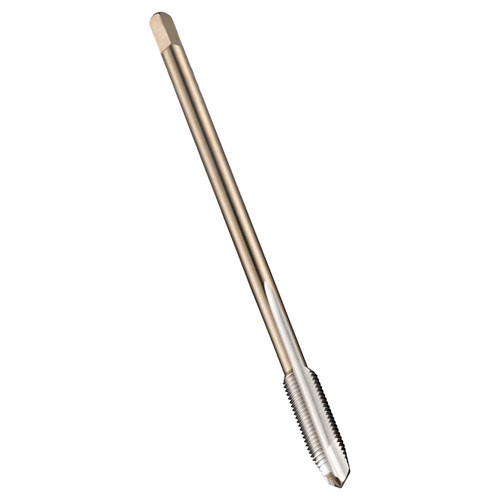

Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric Fine thread M4 with 0.50mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 2.8mm shank and 2.1mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining, plain carbon and alloy steel and wrought or cast aluminium.
Product Specifications
| Connection Diameter (Inch) | 0.1102" |
| Overall Length (Inch) | 2.4803" |
| Clamping Width (mm) | 2.1mm |
| No of Flutes | 3 |
| Thread Pitch (mm) | 0.5mm |
| Clamping Length | 5 |
| Thread Diameter Size | 4 |
| Threading Length (mm) | 12mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 6H |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Tap Chamfer Style | B 3.5-5 |
| Surface Color | Bright Silver |
| Thread Form | MF-Metric fine |
| Country of origin | India |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Brand:
Dormer
Thread Limit:
6H
Number of Flutes:
3
Thread Standard:
DIN 374
Finish/Coating:
Bright
Material:
HSS-E-PM
Through Coolant:
No
Cutting Direction:
Right Hand
interval quantity:
1
