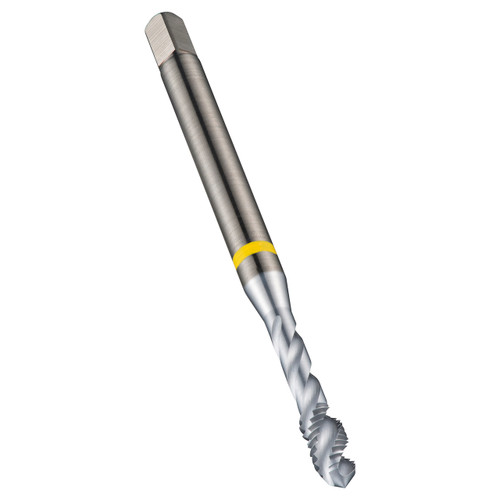

Dormer E298M20 | 0.6299" Diameter x 5.5118" OAL 4 Flute Flash Chrome Coated Spiral Flute Tap

$102.60
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15026494
UPC:
7320760662977
Weight:
6.70 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M20 with 2.50mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 16.0mm shank and 12.0mm square drive, powder metallurgical HSS-E with flash chorme surface finish and 40° helix angle for 2xD blind hole threading in free machining and plain carbon steel and copper or copper alloys.


Product Specifications
Connection Diameter (Inch)0.6299"
Overall Length (Inch)5.5118"
Clamping Width (mm)12mm
No of Flutes4
Flute Helix Angle40
Thread Pitch (mm)2.5mm
Clamping Length15
Thread Diameter Size20
Threading Length (mm)25mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingFlash Chrome
Tap Chamfer StyleC 2-3
Thread FormM-Metric coarse
