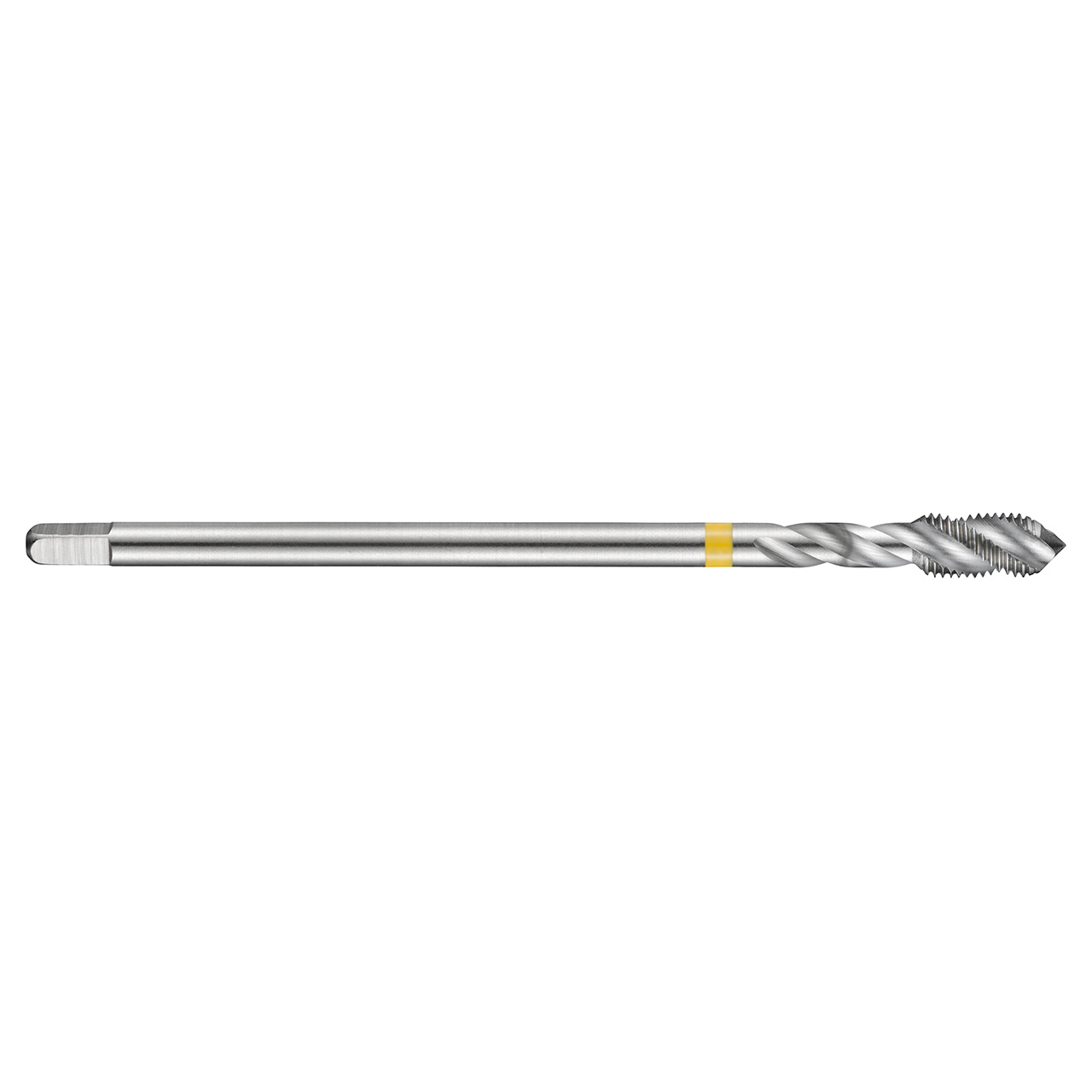

Dormer E300M10X1.0 | 0.2756" Diameter x 3.5433" OAL 3 Flute Flash Chrome Coated Spiral Flute Tap

$44.69
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15026529
Weight:
1.04 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric Fine thread M10 with 1.00mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 7.0mm shank and 5.5mm square drive, powder metallurgical HSS-E with flash chorme surface finish and 40° helix angle for 2xD blind hole threading in free machining and plain carbon steel and copper or copper alloys.


Product Specifications
Connection Diameter (Inch)0.2756"
Overall Length (Inch)3.5433"
Clamping Width (mm)5.5mm
No of Flutes3
Flute Helix Angle40
Thread Pitch (mm)1mm
Clamping Length8
Thread Diameter Size10
Threading Length (mm)12mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingFlash Chrome
Tap Chamfer StyleC 2-3
Thread FormMF-Metric fine
