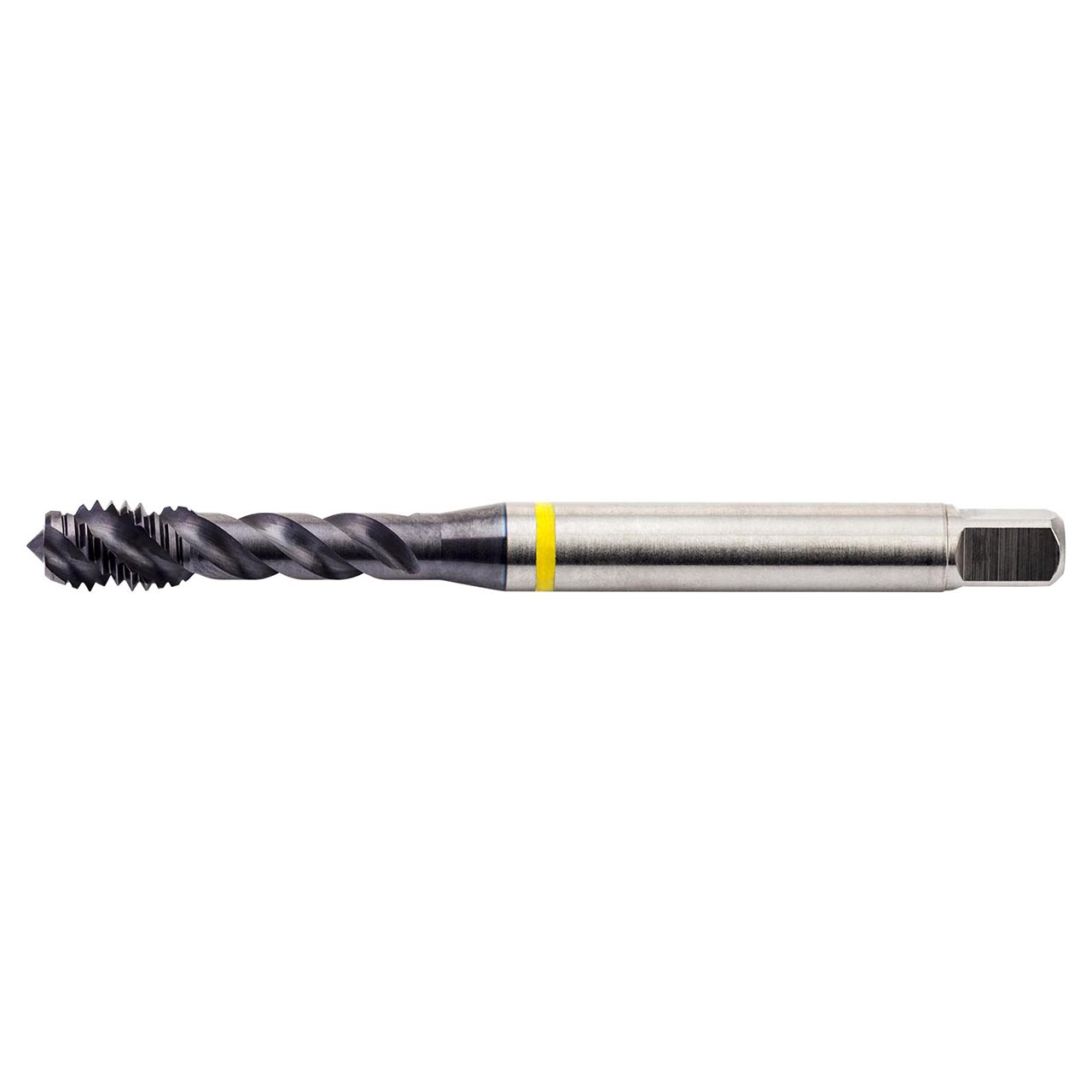

Dormer E412M12 | 0.3543" Diameter x 4.3307" OAL 3 Flute TiAlN/Top Coated Spiral Flute Tap

$190.00 $85.50
(You save $104.50)
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
17978608
UPC:
Weight:
2.01 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

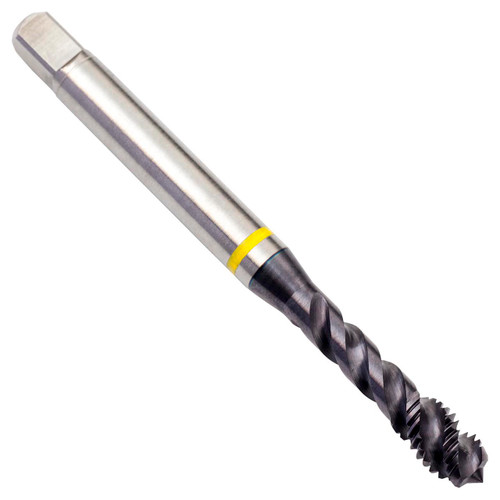

Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M12 with 1.75mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 9.0mm shank and 7.0mm square drive, powder metallurgical HSS-E with TiAlN-Top coating and 48° helix angle for 3xD blind hole threading in steel and cast steel.


Product Specifications
Connection Diameter (Inch)0.3543"
Overall Length (Inch)4.3307"
Clamping Width (mm)7mm
No of Flutes3
Flute Helix Angle48
Thread Pitch (mm)1.75mm
Clamping Length10
Thread Diameter Size12
Threading Length (mm)18mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingTiAlN/Top
Tap Chamfer StyleC 2-3
Surface ColorBlack - Deep Purple
Thread FormM-Metric coarse
