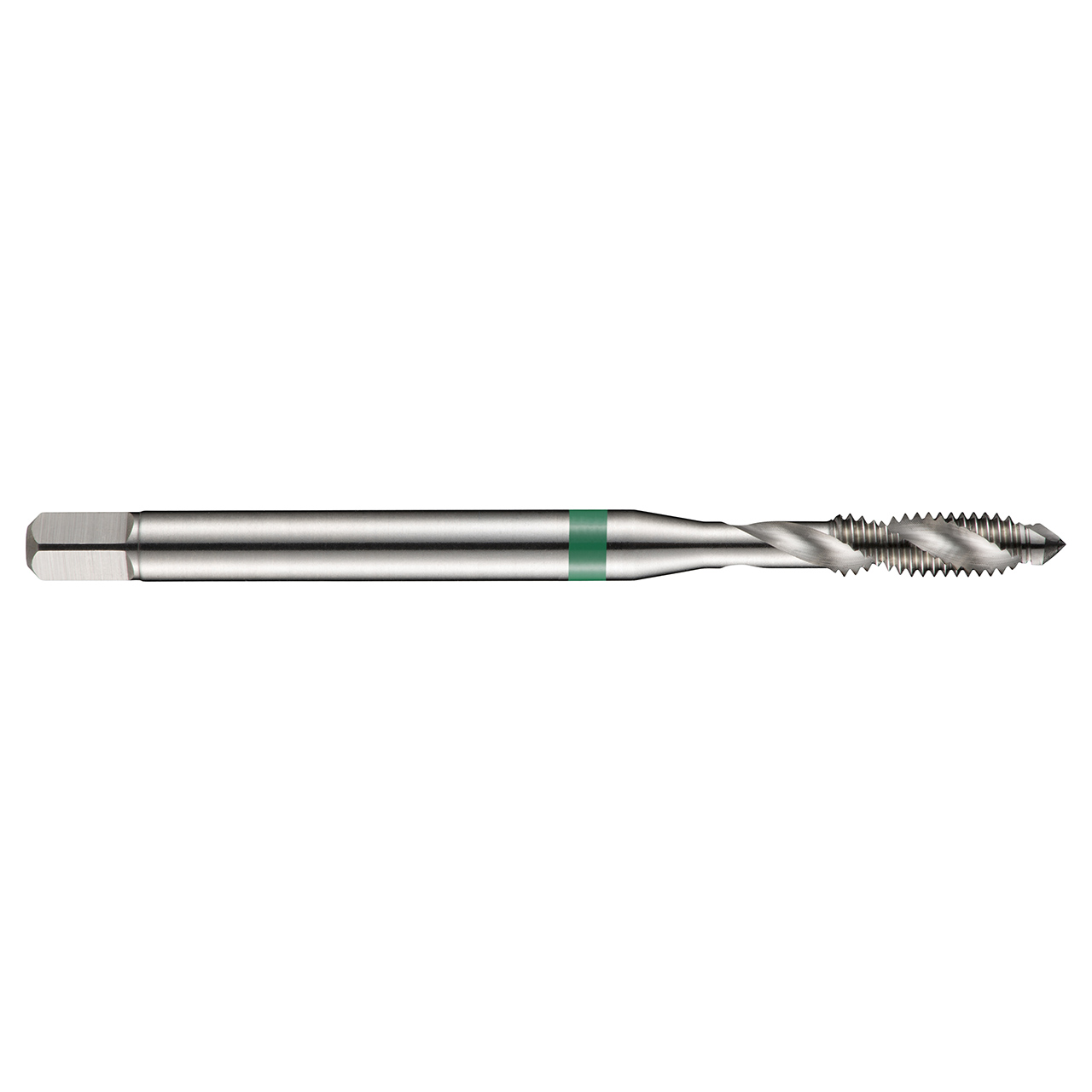

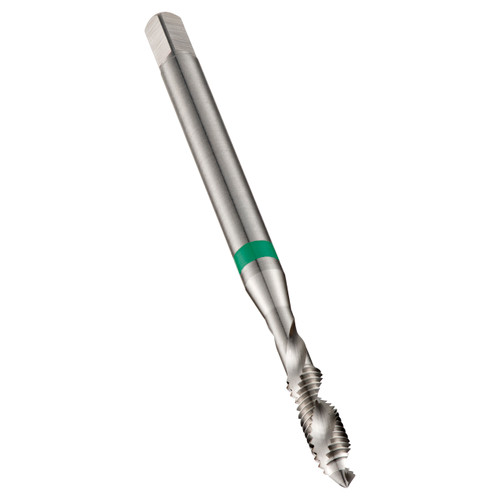

Spiral flute tap Green Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M10 with 1.50mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 10.0mm shank and 8.0mm square drive, powder metallurgical HSS-E with bright finish and 35 Degree helix angle for 2.5xD blind hole threading in non-ferrous metals.
Product Specifications
| Connection Diameter (Inch) | 0.3937" |
| Overall Length (Inch) | 3.937" |
| Clamping Width (mm) | 8mm |
| No of Flutes | 2 |
| Flute Helix Angle | 35 |
| Usable Length (mm) | 39mm |
| Thread Pitch (mm) | 1.5mm |
| Clamping Length | 11 |
| Thread Diameter Size | 10 |
| Threading Length (mm) | 20mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 6H |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Bright Silver |
| Thread Form | M-Metric coarse |
| Country of origin | India |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
interval quantity:
1
