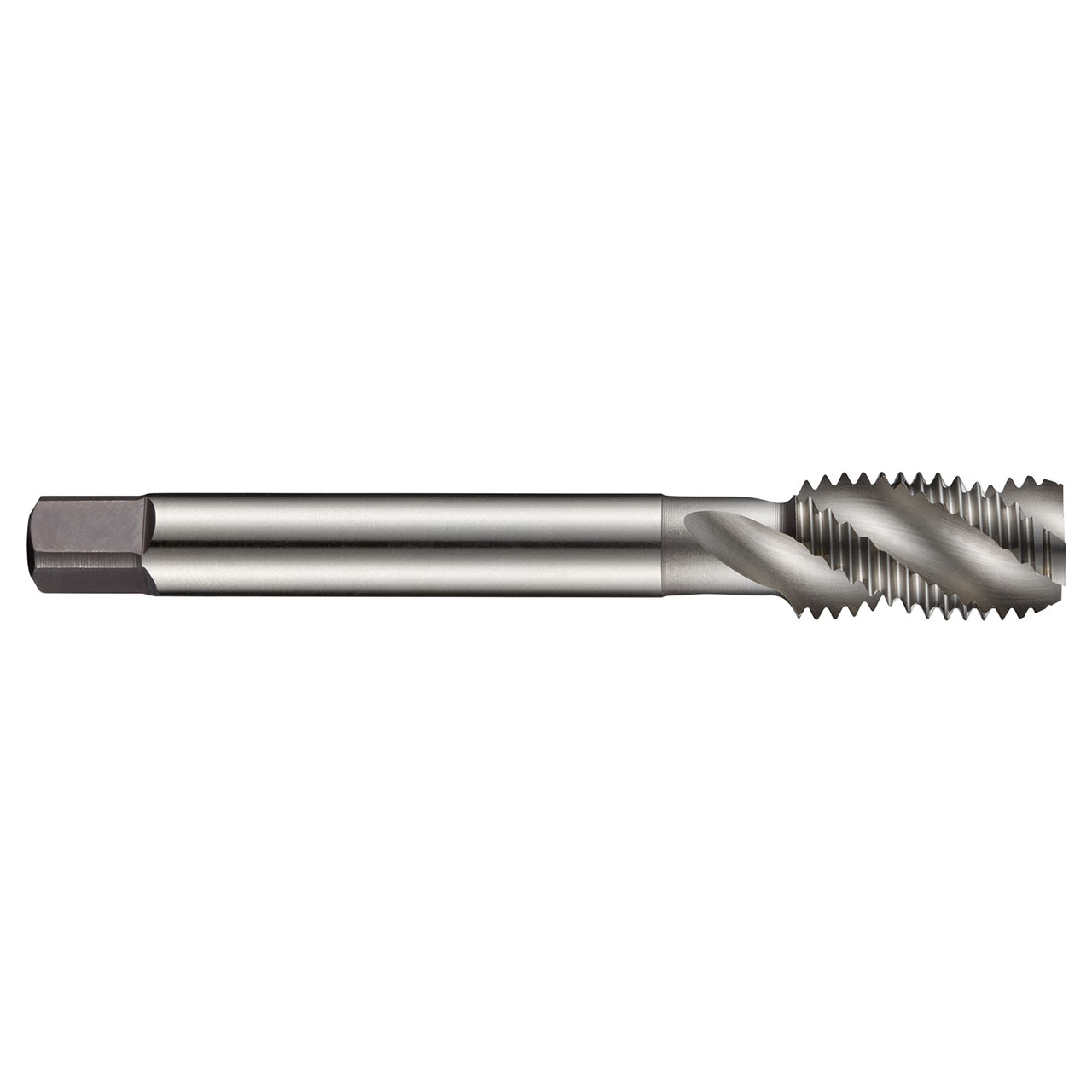

Dormer E5385/16 | 0.315" Diameter x 2.8346" OAL 3 Flute Bright/ST Coated Spiral Flute Tap

$34.83
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15023907
Weight:
0.92 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for British Standard Fine thread BSF 5/16" with 22 TPI and Medium class of fit, dimensions according to ISO 529 standard with 8.0mm shank and 6.3mm square drive, HSS with bright finish with steam tempering and 40° helix angle for 2xD blind hole threading in free machining, plain carbon and alloy steel.


Product Specifications
Connection Diameter (Inch)0.315"
Overall Length (Inch)2.8346"
Clamping Width (mm)6.3mm
Thread Diameter (mm)7.938mm
No of Flutes3
Flute Helix Angle40
Usable Length (mm)31mm
Thread Diameter Size5/16
Threading Length (mm)16mm
Material CodeHSS
Thread Tolerance ClassMedium
Cutting DirectionRight Hand
CoatingBright/ST
Tap Chamfer StyleC 2-3
Surface ColorBright & Blue
Thread FormBSF-British standard fine
