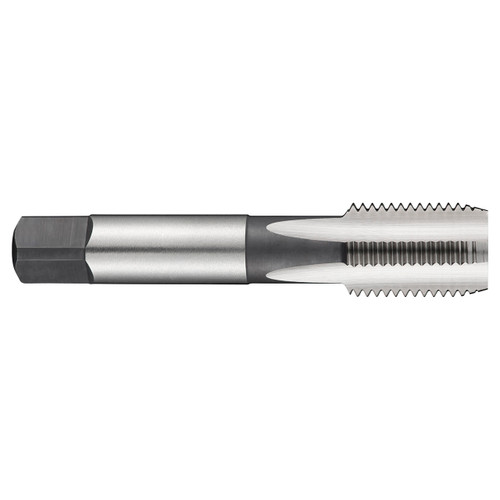

Dormer E5471/8NO1 | 0.315" Diameter x 2.3228" OAL 4 Flute Bright Coated British Standard Pipe Tap

$33.01
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15023676
UPC:
7320760157169
Weight:
0.88 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Straight flute hand tap NO1 with a 6-8xP taper lead, for British Standard Pipe thread G 1/8" with 28 TPI and Normal class of fit, dimensions according to ISO 2284 standard with 8.0mm shank and 8.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel.


Product Specifications
Connection Diameter (Inch)0.315"
Overall Length (Inch)2.3228"
Clamping Width (mm)8mm
Thread Diameter (mm)9.728mm
No of Flutes4
Clamping Length9
Thread Diameter Size1/8
Threading Length (mm)15mm
Material CodeHSS
Thread Tolerance ClassNormal
Cutting DirectionRight Hand
CoatingBright
Surface ColorBright Silver
Thread FormG-British standard pipe fastening-G series
