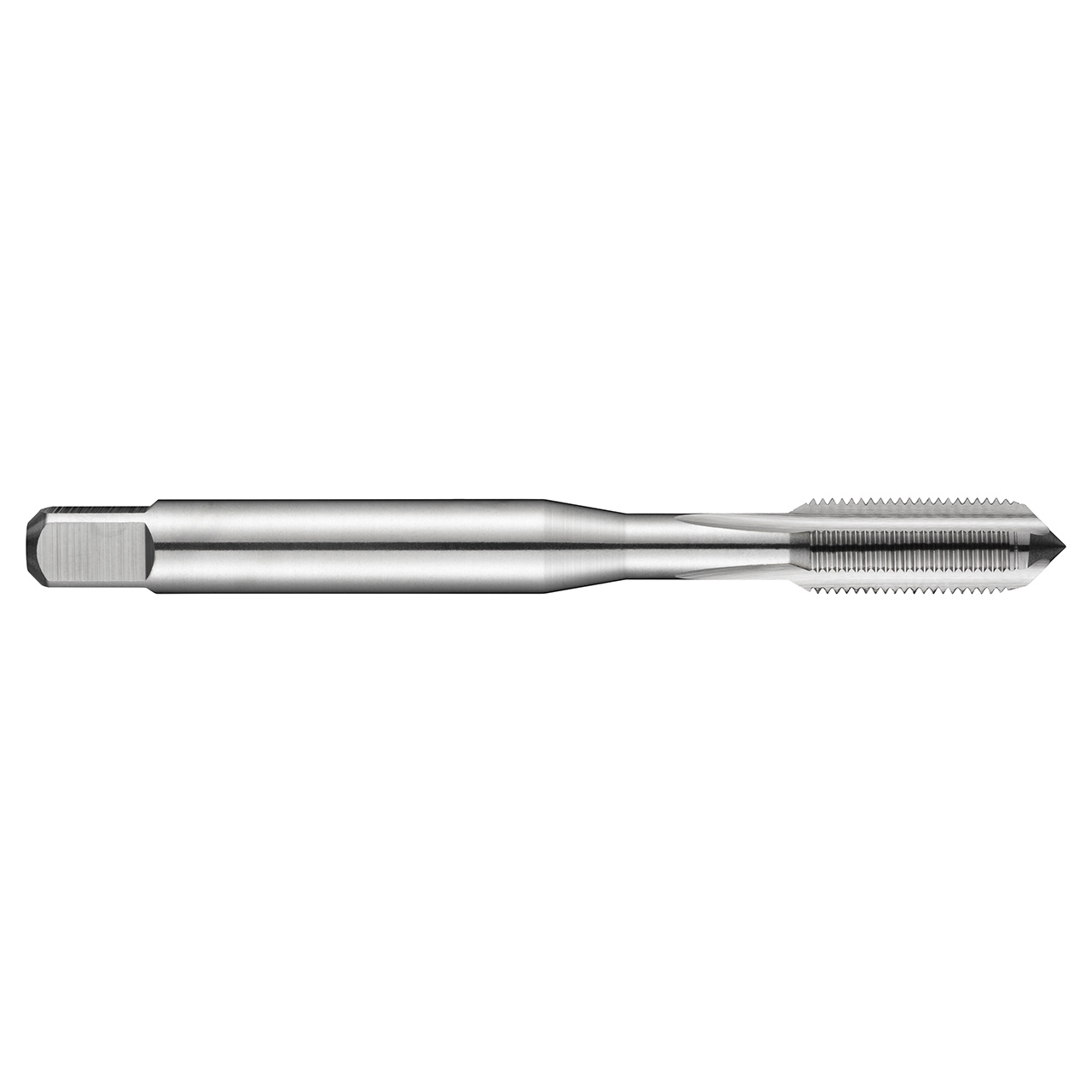

Straight flute hand tap NO3 with a 2-3xP semi-bottoming lead, for Unified National thread UN 1/4" with 36 TPI and 2B class of fit, dimensions according to ISO 529 standard with 6.3mm shank and 5.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys.
Product Specifications
| Connection Diameter (Inch) | 0.248" |
| Overall Length (Inch) | 2.5984" |
| Clamping Width (mm) | 5mm |
| Thread Diameter (mm) | 6.35mm |
| No of Flutes | 3 |
| Usable Length (mm) | 26mm |
| Thread Diameter Size | 1/4 |
| Threading Length (mm) | 13mm |
| Material Code | HSS |
| Thread Tolerance Class | 2B |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Bright Silver |
| Thread Form | UN-Unified |
| Country of origin | Brazil |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Brand:
Dormer
Thread Size (Inch):
1/4"
Thread Limit:
2B
Overall Length (Decimal Inch):
2.5984"
Overall Length (mm):
66.00mm
Number of Flutes:
3
Material:
HSS
Finish/Coating:
Bright
Thread Direction:
Right Hand
Through Coolant:
No
Thread Standard:
ISO 529
