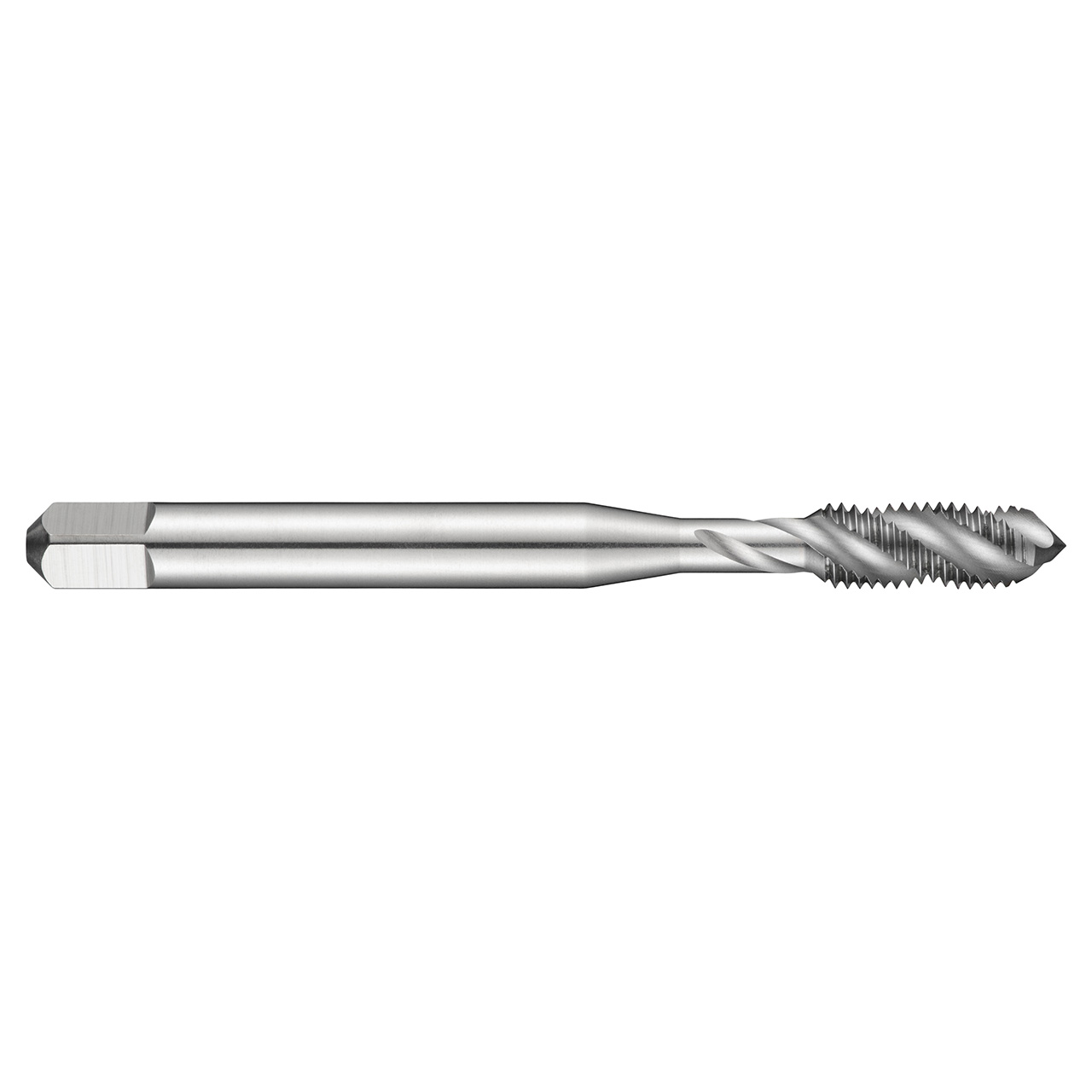

Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for Einsatzgewinde Metrisch (metric Wire Insert thread) EGM6 with 1.00mm pitch and 6H class of fit, dimensions according to DORMER-ISO standard with 8.0mm shank and 6.3mm square drive, HSS with bright finish and 40° helix angle for 2xD blind hole threading in free machining and plain carbon steel.
Product Specifications
| Connection Diameter (Inch) | 0.315" |
| Overall Length (Inch) | 2.8346" |
| Clamping Width (mm) | 6.3mm |
| Thread Diameter (mm) | 7.3mm |
| No of Flutes | 3 |
| Flute Helix Angle | 40 |
| Usable Length (mm) | 31mm |
| Thread Pitch (mm) | 1mm |
| Clamping Length | 9 |
| Thread Diameter Size | 6 |
| Threading Length (mm) | 16mm |
| Material Code | HSS |
| Thread Tolerance Class | 6H |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Bright Silver |
| Thread Form | EGM-EGM (Wire Insert) |
