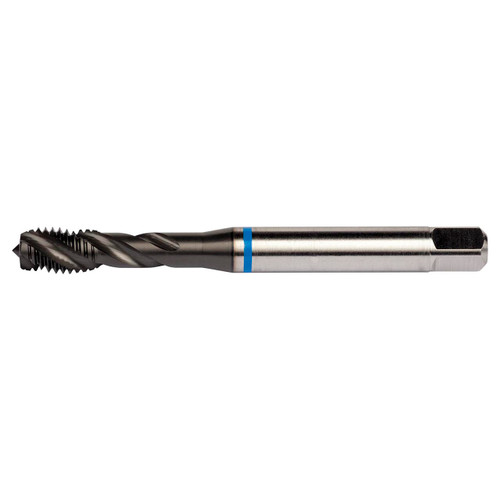

Dormer E624M14 | 0.429" Diameter x 4.3307" OAL 3 Flute TiAlN/Top Coated Spiral Flute Tap

$102.60
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15026159
Weight:
2.47 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M14 with 2.00mm pitch and 6H class of fit with D7 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.4290" shank and 0.3200" square drive, powder metallurgical HSS-E with TiAlN-Top coating and 40° helix angle for 2xD blind hole threading in free machining and plain carbon steel and copper or copper alloys.


Product Specifications
Connection Diameter (Inch)0.429"
Overall Length (Inch)4.3307"
No of Flutes3
Flute Helix Angle40
Thread Pitch (mm)2mm
Clamping Length13
Thread Diameter Size14
Threading Length (mm)20mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingTiAlN/Top
Tap Chamfer StyleC 2-3
Surface ColorBlack - Deep Purple
Thread FormM-Metric coarse
