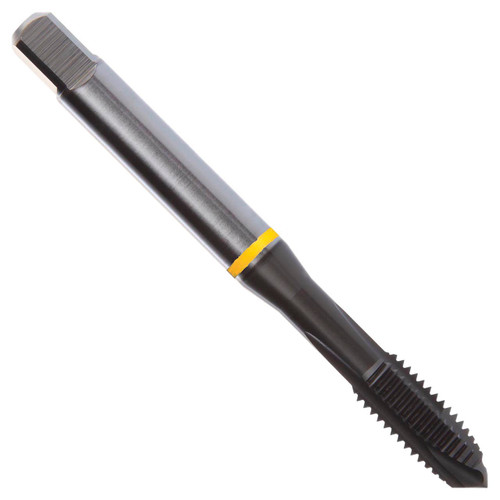

Spiral point tap Yellow Shark with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M6 with 1.00mm pitch and 6H class of fit with D5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.2550" shank and 0.1890" square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2.5xD through hole threading in free machining and plain carbon steel and copper or copper alloys.
Product Specifications
| Connection Diameter (Inch) | 0.255" |
| Overall Length (Inch) | 3.1496" |
| No of Flutes | 3 |
| Usable Length (mm) | 30mm |
| Thread Pitch (mm) | 1mm |
| Clamping Length | 8 |
| Thread Diameter Size | 6 |
| Threading Length (mm) | 15mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 6H |
| Cutting Direction | Right Hand |
| Coating | TiAlN/Top |
| Tap Chamfer Style | B 3.5-5 |
| Surface Color | Black - Deep Purple |
| Thread Form | M-Metric coarse |
| Country of origin | India |
