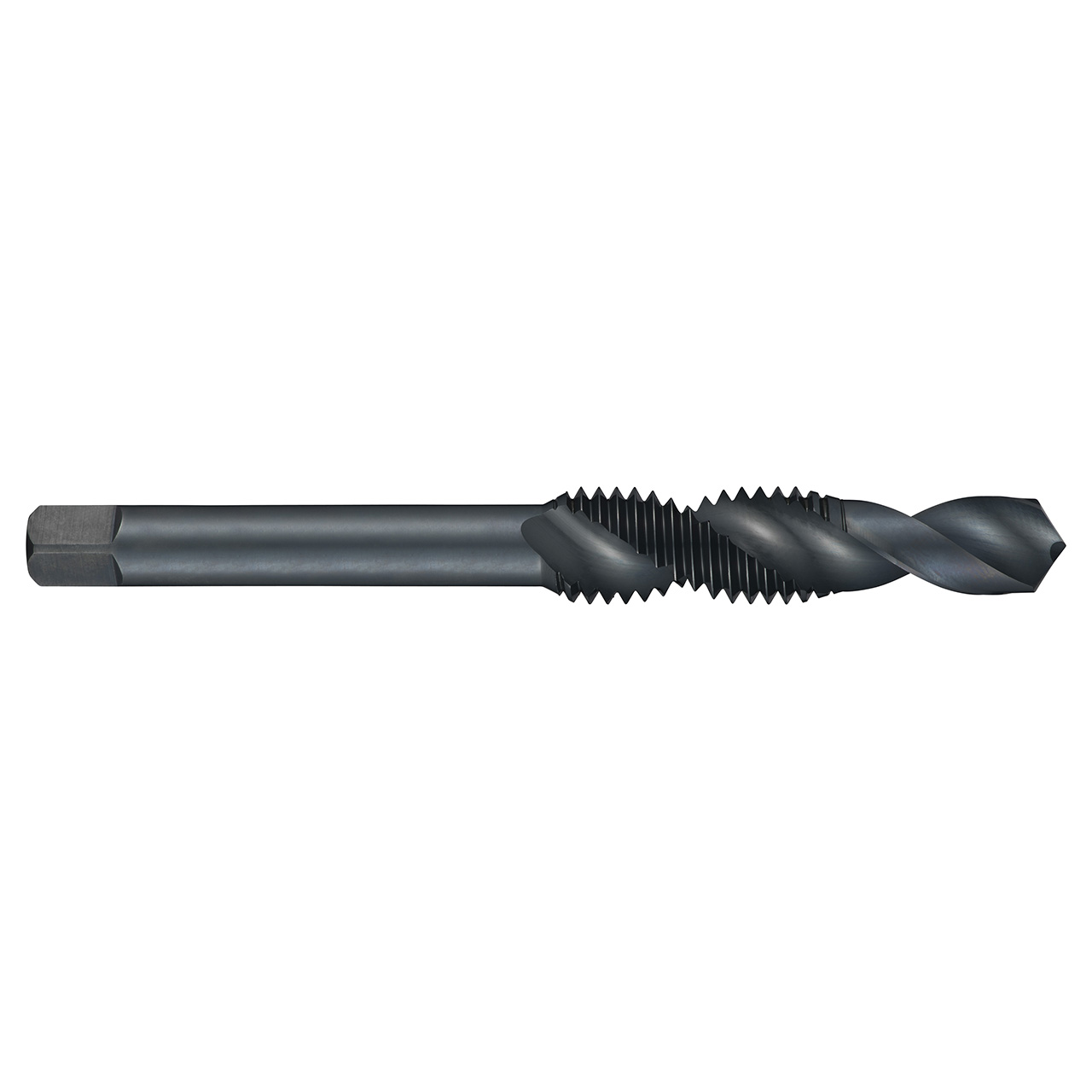

Dormer E6513/8 | 0.3937" Diameter x 4.2126" OAL 2 Flute Steam Tempered Coated Combination Drill & Tap

$31.55
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15023995
Weight:
1.78 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Combination drill-tap with a 30° spiral flute, for Unified National Coarse thread UNC 3/8" with 16 TPI and 2B class of fit, dimensions according to DORMER-DIN standard with 10.0mm shank and 8.0mm square drive, HSS with steam tempered surface finish and 30° helix angle for 1.5xD through hole threading in free machining steel.


Product Specifications
Connection Diameter (Inch)0.3937"
Overall Length (Inch)4.2126"
Clamping Width (mm)8mm
Thread Diameter (mm)8mm
No of Flutes2
Flute Helix Angle30
Thread Diameter Size3/8
Threading Length (mm)23mm
Material CodeHSS
Thread Tolerance Class2B
Cutting DirectionRight Hand
CoatingSteam Tempered
Tap Chamfer StyleC 2-3
Surface ColorBlack
Thread FormUNC-Unified Coarse
