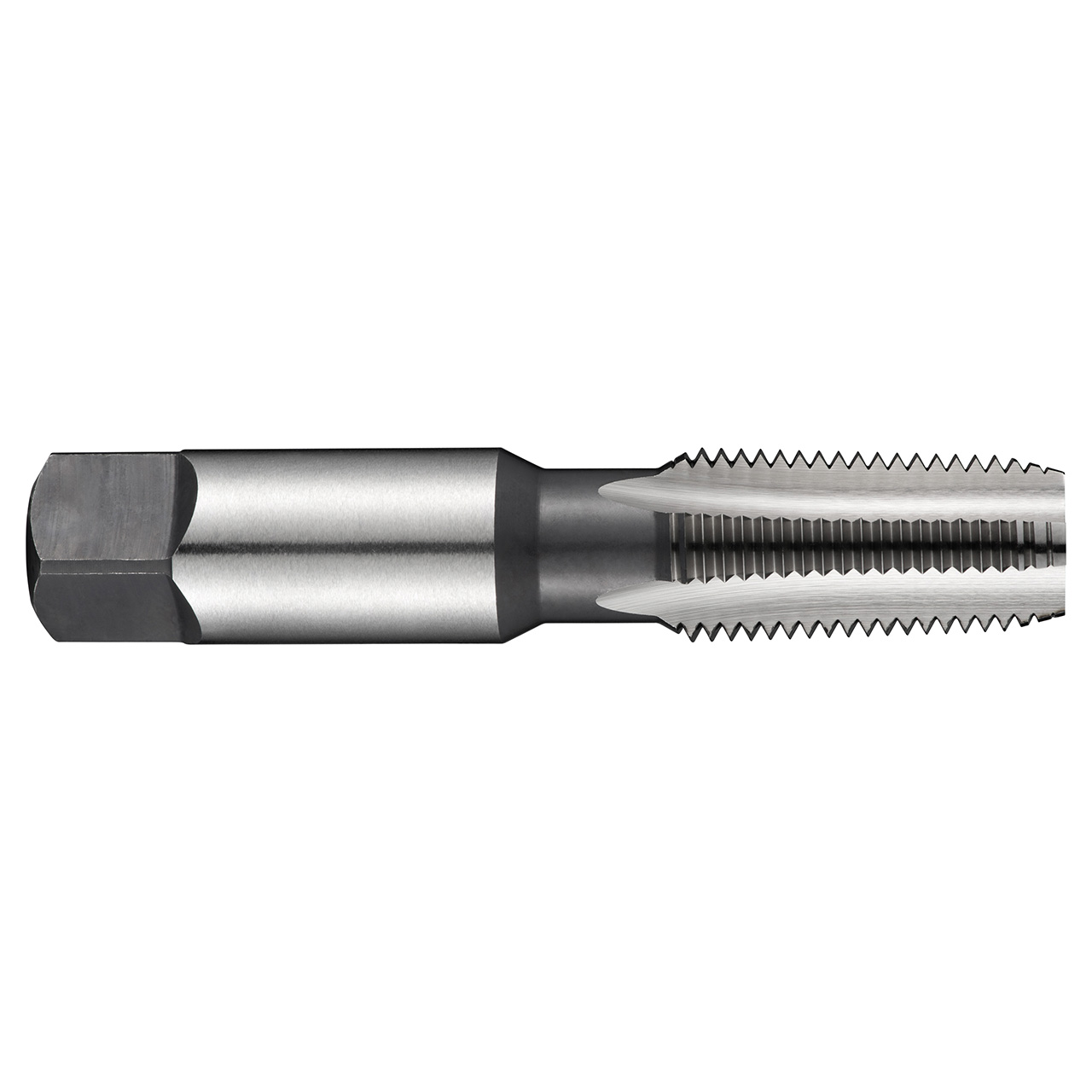

Straight flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for (Dryseal) National Pipe Taper thread for Fuel lines NPTF 1/8" with 27 TPI and Normal class of fit, dimensions according to ~ANSI B94.9 standard with 11.1mm shank and 8.3mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys.
Product Specifications
| Connection Diameter (Inch) | 0.437" |
| Overall Length (Inch) | 2.7559" |
| Clamping Width (mm) | 8.3mm |
| Thread Diameter (mm) | 10.29mm |
| No of Flutes | 4 |
| Clamping Length | 10 |
| Thread Diameter Size | 1/8 |
| Threading Length (mm) | 19mm |
| Material Code | HSS |
| Thread Tolerance Class | Normal |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Bright Silver |
| Thread Form | NPTF-National taper pipe dryseal |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
