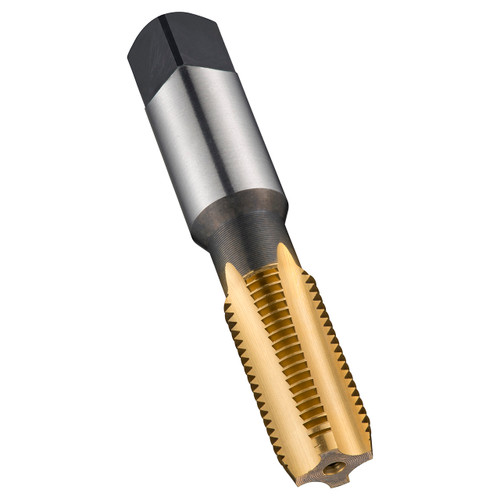

Straight flute tap NO3 with a 2-3xP semi-bottoming lead, for (Dryseal) National Pipe Straight thread for Fuel lines NPSF 1/8" with 27 TPI and Normal class of fit, dimensions according to ~ANSI B94.9 standard with 11.1mm shank and 8.3mm square drive, HSS with TiN coating for 1.5xD through or blind hole threading in alloy steel, cast-iron and copper or copper alloys.
Product Specifications
| Connection Diameter (Inch) | 0.437" |
| Overall Length (Inch) | 2.7559" |
| Clamping Width (mm) | 8.3mm |
| Thread Diameter (mm) | 10.29mm |
| No of Flutes | 4 |
| Usable Length (mm) | 19mm |
| Clamping Length | 10 |
| Thread Diameter Size | 1/8 |
| Threading Length (mm) | 19mm |
| Material Code | HSS |
| Thread Tolerance Class | Normal |
| Cutting Direction | Right Hand |
| Coating | TiN |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Gold |
| Thread Form | NPSF-National straight pipe fuel |
