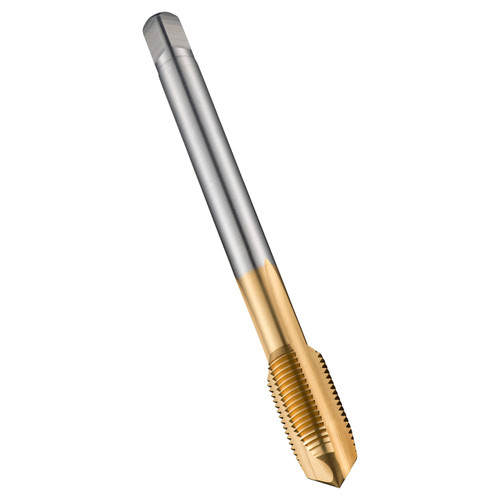

Dormer EP10TINM12X1.0 | 0.3543" Diameter x 3.937" OAL 3 Flute TiN Coated Spiral Point Tap

$68.85
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15026258
Weight:
1.94 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric Fine thread M12 with 1.00mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 9.0mm shank and 7.0mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in free machining, plain carbon and alloy steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium.


Product Specifications
Connection Diameter (Inch)0.3543"
Overall Length (Inch)3.937"
Clamping Width (mm)7mm
No of Flutes3
Thread Pitch (mm)1mm
Clamping Length10
Thread Diameter Size12
Threading Length (mm)21mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingTiN
Tap Chamfer StyleB 3.5-5
Surface ColorGold
Thread FormMF-Metric fine
