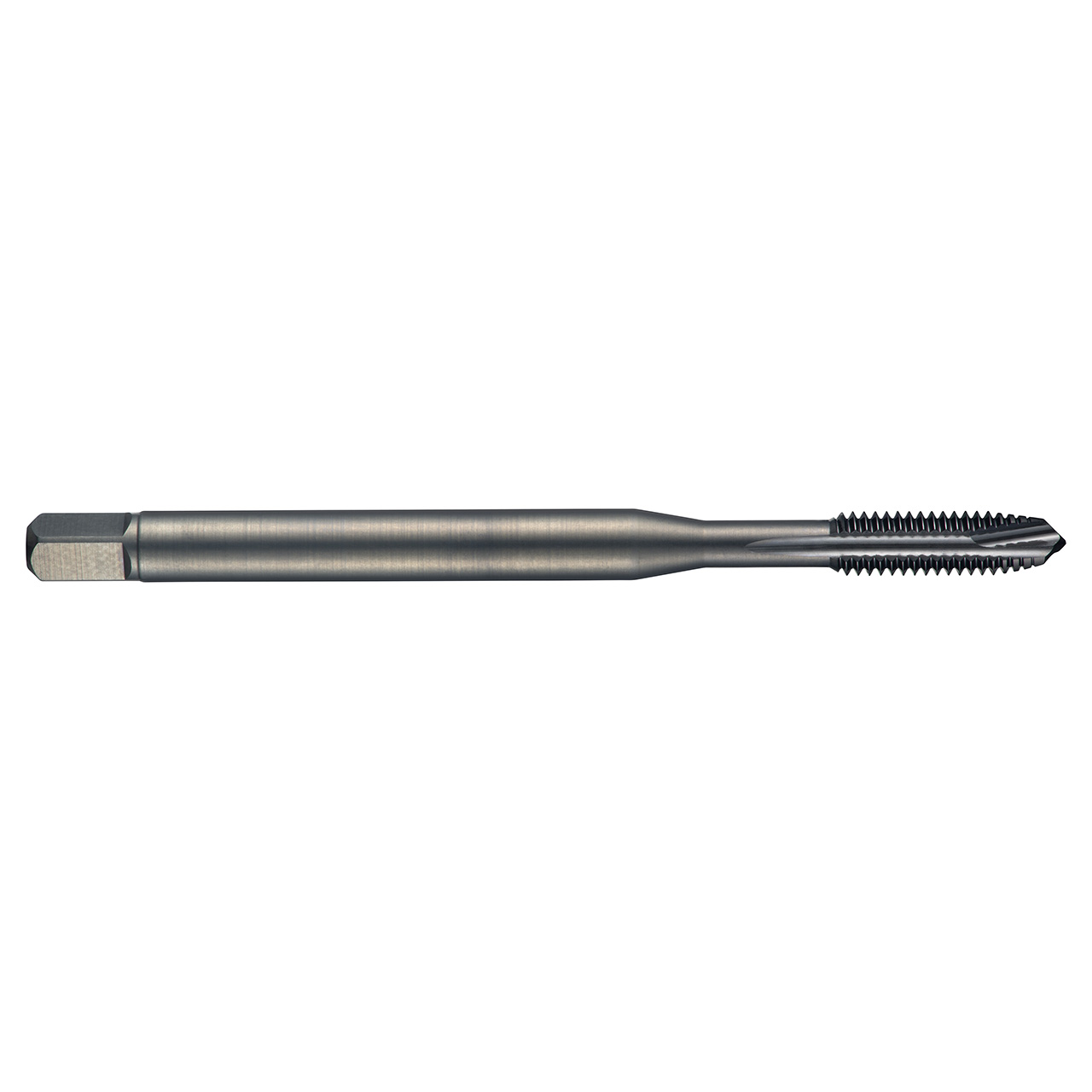

Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for British Standard Pipe thread G 1/2" with 14 TPI and Normal class of fit, dimensions according to DIN 5156 standard with 16.0mm shank and 12.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications.
Product Specifications
| Connection Diameter (Inch) | 0.6299" |
| Overall Length (Inch) | 4.9213" |
| Clamping Width (mm) | 12mm |
| Thread Diameter (mm) | 20.955mm |
| No of Flutes | 4 |
| Clamping Length | 15 |
| Thread Diameter Size | 1/2 |
| Threading Length (mm) | 24mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | Normal |
| Cutting Direction | Right Hand |
| Coating | Steam Tempered |
| Tap Chamfer Style | B 3.5-5 |
| Surface Color | Black |
| Thread Form | G-British standard pipe fastening-G series |
| Country of origin | Brazil |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
