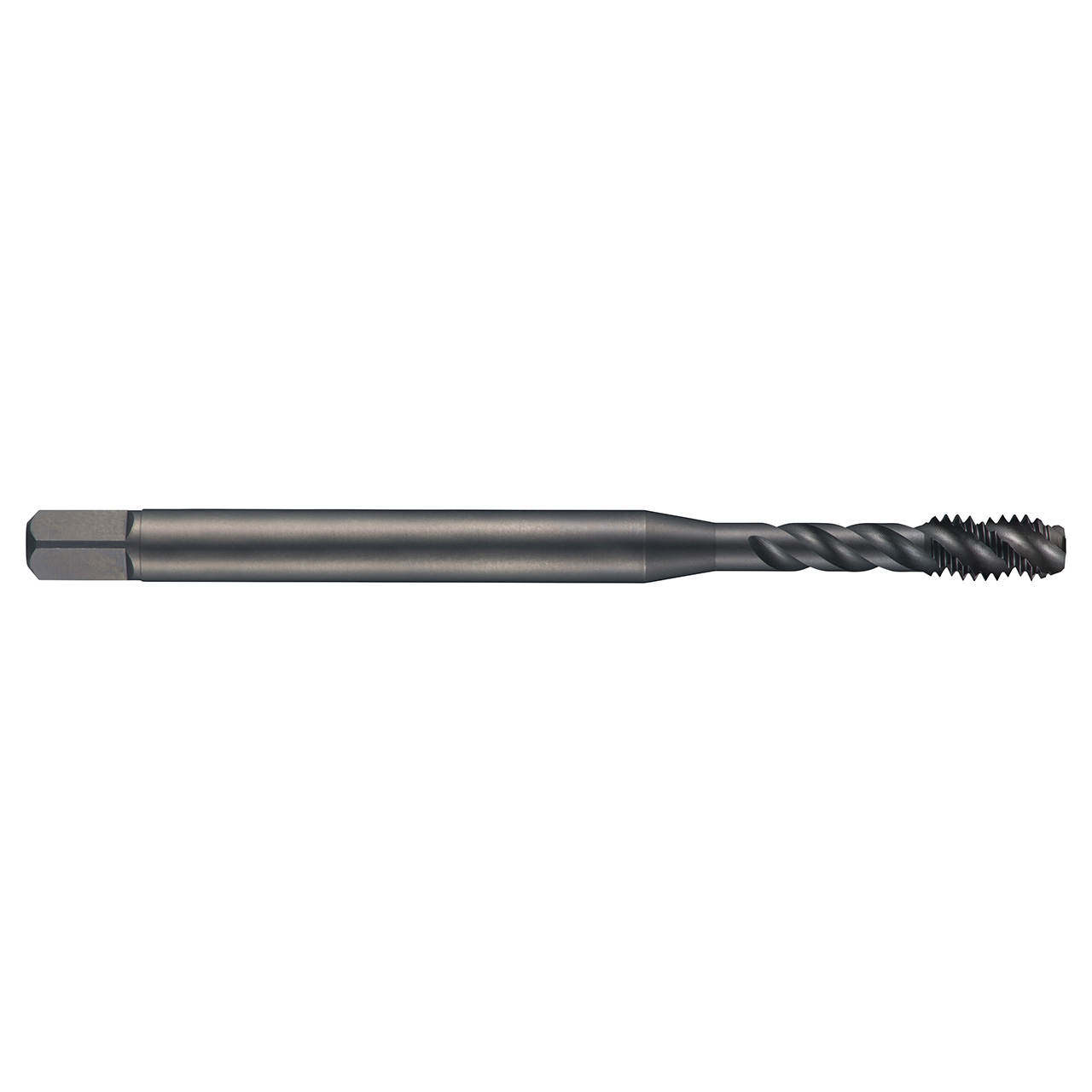

Dormer EX01M2.5 | 0.1102" Diameter x 1.9685" OAL 3 Flute Steam Tempered Coated Spiral Flute Tap

$35.15
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15023148
UPC:
7320760137338
Weight:
0.16 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M2.5 with 0.45mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 2.8mm shank and 2.1mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications.


Product Specifications
Connection Diameter (Inch)0.1102"
Overall Length (Inch)1.9685"
Clamping Width (mm)2.1mm
No of Flutes3
Flute Helix Angle45
Usable Length (mm)12.5mm
Thread Pitch (mm)0.45mm
Clamping Length5
Thread Diameter Size2.5
Threading Length (mm)4mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingSteam Tempered
Tap Chamfer StyleC 2-3
Surface ColorBlack
Thread FormM-Metric coarse
