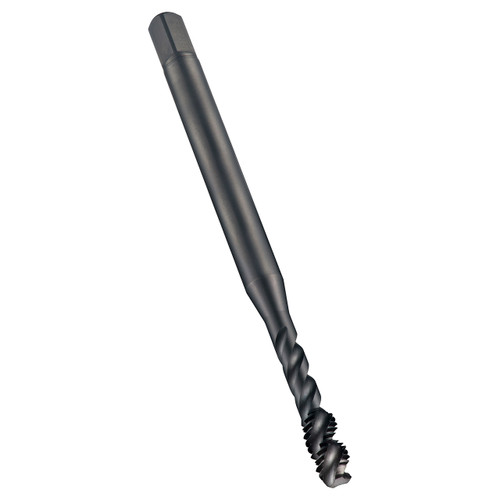

Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M56 with 5.50mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 40.0mm shank and 32.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45 Degree helix angle for 2.5xD blind hole threading in general purpose applications.
| Connection Diameter (Inch) | 1.5748" |
| Overall Length (Inch) | 9.8425" |
| Clamping Width (mm) | 32mm |
| No of Flutes | 5 |
| Flute Helix Angle | 45 |
| Thread Pitch (mm) | 5.5mm |
| Clamping Length | 35 |
| Thread Diameter Size | 56 |
| Threading Length (mm) | 55mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 6H |
| Cutting Direction | Right Hand |
| Coating | Steam Tempered |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Black |
| Thread Form | M-Metric coarse |
| Country of origin | India |
