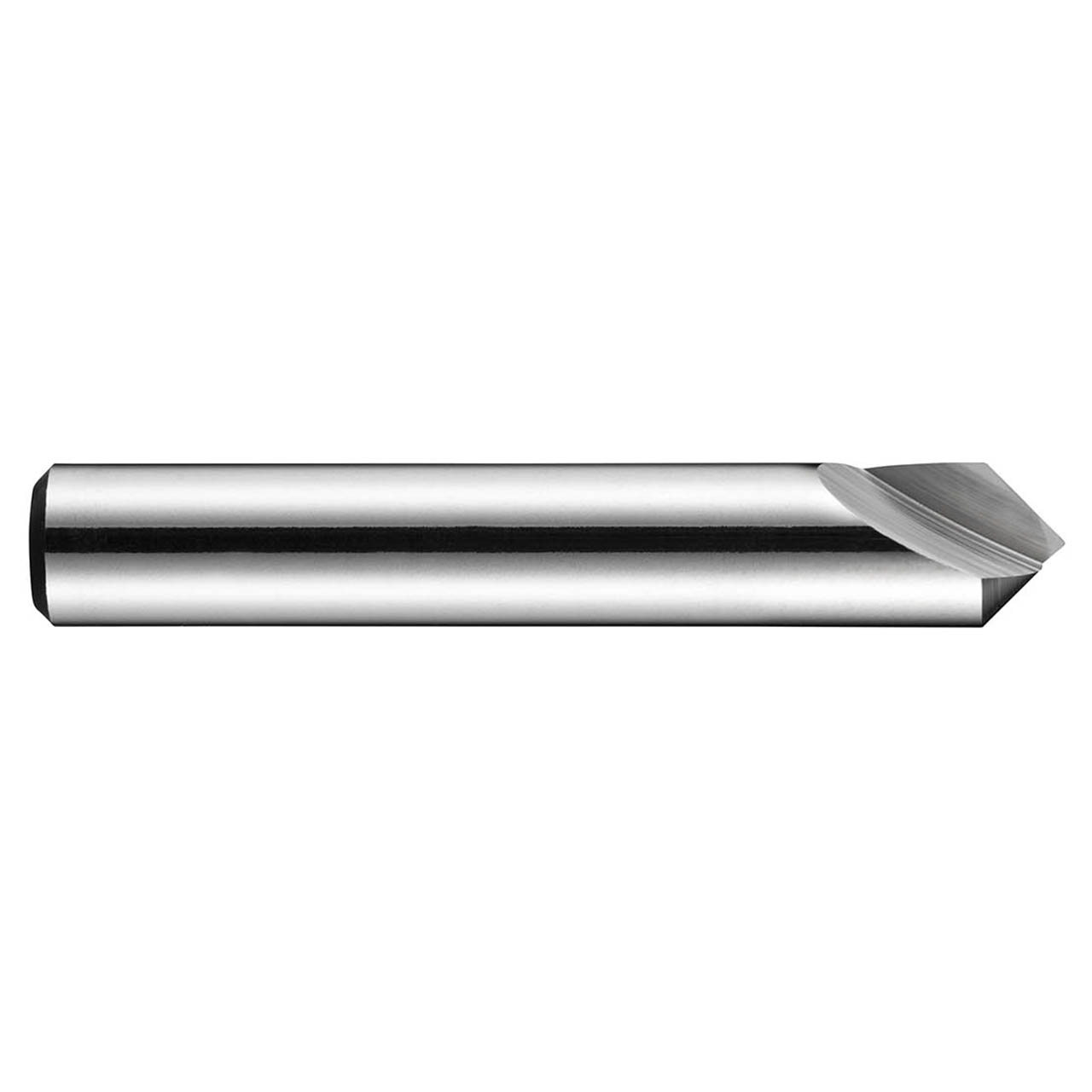

Countersink with 1-flute, 90° chamfering angle, maximum diameter 8.00mm with an overall length of 50mm and 8mm straight shank, according to Dormer standard to produce a conical seat for ISO Metric countersunk-head screws, HSS with standard bright finish for machining free machining and plain carbon steel, wrought and copper or copper alloys.
Product Specifications
| EDP Number | 0149201 |
| Flute Count | 1 |
| Connection Diameter (Inch) | 0.315" |
| Cutting Diameter (Inch) | 0.315" |
| Overall Length (Inch) | 1.9685" |
| Point Angle | 90 |
| Material Code | HSS |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
Head Diameter (Inch):
5/16"
Head Diameter (Decimal Inch):
0.3150"
Head Diameter (mm):
8mm
Material:
HSS
Finish/Coating:
Bright
Number of Flutes:
1
